Thresher (STANDALONE)

THRESHER Single-Shot Z-Shell Launcher Description The Thresher is a single-shot launcher built around the Z-Shell turn-lock mechanism for fast reloads and adaptable ammo types. Its sealed-shell interface allows reliable performance while enabling quick swaps between standard Nerf darts, Mega, Mega XL, and Rival formats without altering the core build. A shell holder attachment supports staged reloads, and the lightweight construction keeps operation simple while remaining competitive. Hardware Kit Part McMaster # Qty required 4-40 3/8" FH (steel) 90273A108 12 4-40 1" FH (steel) 90273A115 6 10-32 3/4" FH (steel) 90273A831 6 10-32 1.25" BH (steel) 91440A516 6 10-32 1/8" thick nut 90480A195 12 10-32 Flange nut 90389A113 3 10-32 threaded rod (3ft) 98838A011 4 x 8"+1 x 9.5" Catch Washer 7421K12 1 1.5" OD washer 92141A035 1 Small Spring (3/4") (36" ×5) 9662K16 6 K26 (11") (5.5" piece) 9637K26 1 K25 (11") (5.5" piece) 9637K25 1 1.375" ID Plunger Tube (3ft) 53945K21 5 Alum tube 0.509" ID (3ft) 9390N15 1 1.375" OD O-RING 9452K87 6 1.0" OD O-RING FAT 9452K81 3 0.5" OD O-RING FAT 9452K18 3 0.5" OD O-RING 9452K21 12 Key Features Single-shot configuration with Z-Shell turn-lock mechanism Airtight seal for consistent power and performance Supports standard, Mega, Mega XL, and Rival formats Includes shell holder attachment for staged reloads Simple, lightweight build suitable for casual and competitive use

Thresher (STANDALONE)
Performance
Performance details coming soon.
Compatibility
Foam
Features
Add product metafields to control this product's tech tree stats.
Family
Zeroworx

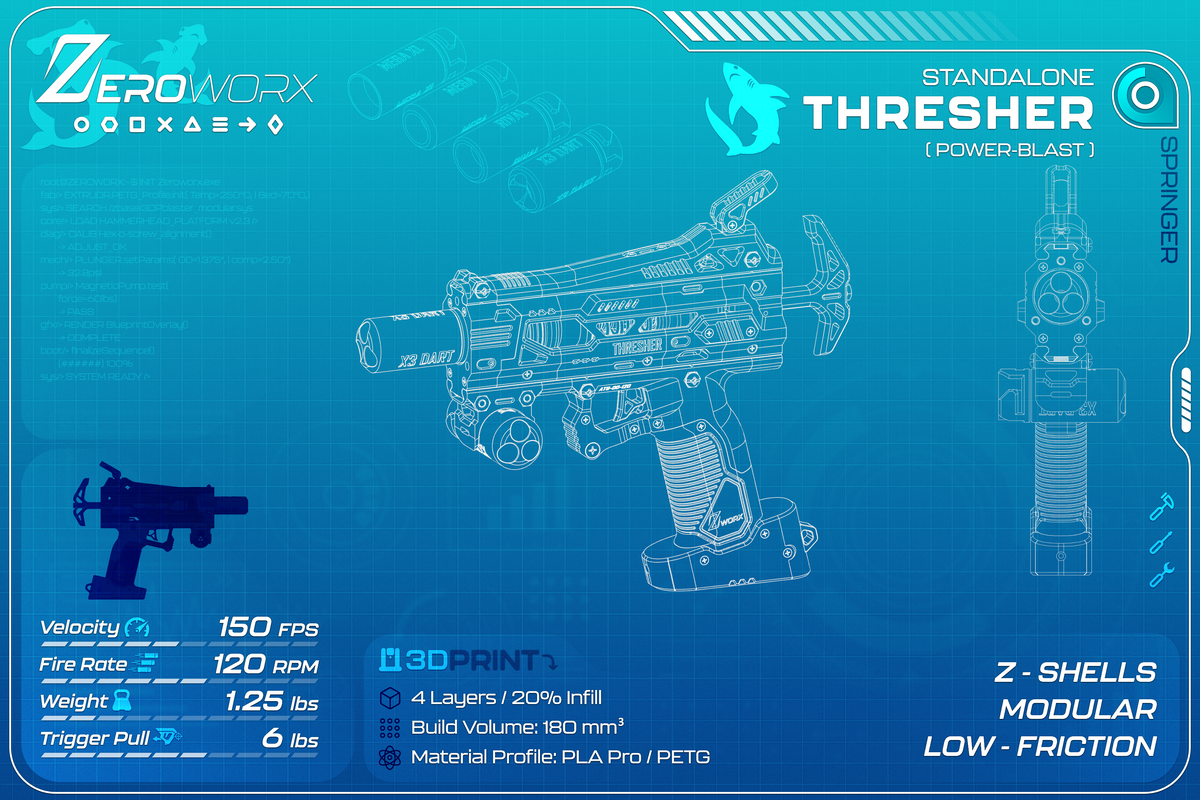

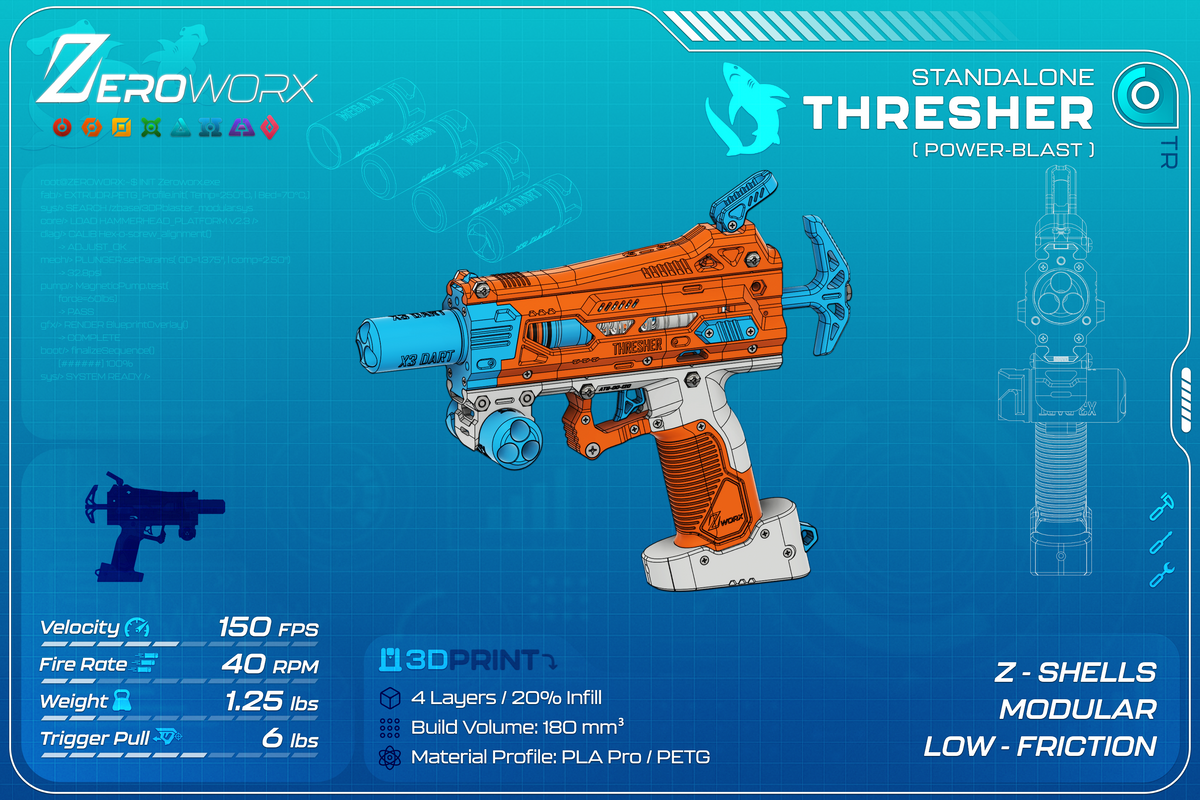

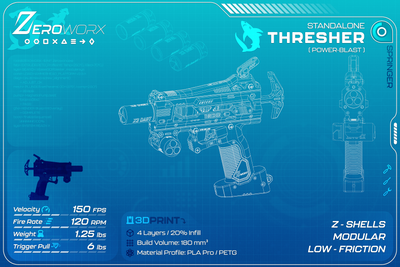

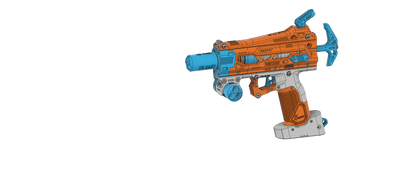

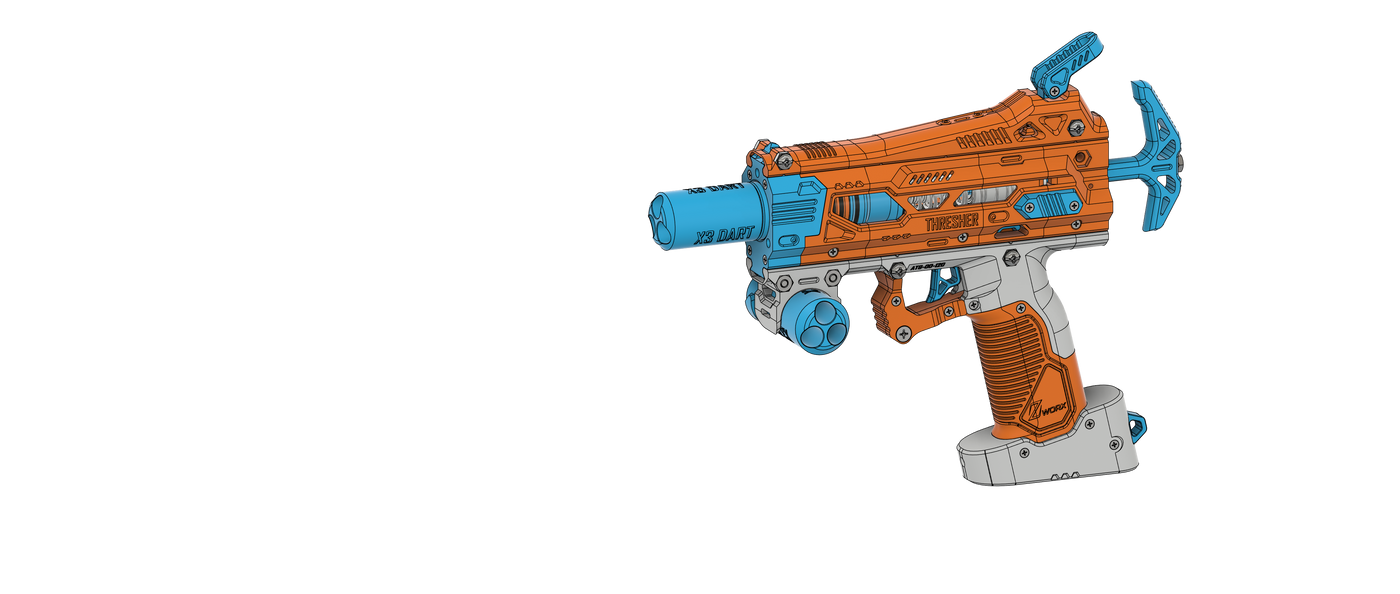

THRESHER

Single-Shot Z-Shell Launcher

Description

The Thresher is a single-shot launcher built around the Z-Shell turn-lock mechanism for fast reloads and adaptable ammo types. Its sealed-shell interface allows reliable performance while enabling quick swaps between standard Nerf darts, Mega, Mega XL, and Rival formats without altering the core build. A shell holder attachment supports staged reloads, and the lightweight construction keeps operation simple while remaining competitive.

Hardware Kit

Part

McMaster #

Qty required
4-40 3/8" FH (steel) 90273A108 12
4-40 1" FH (steel) 90273A115 6
10-32 3/4" FH (steel) 90273A831 6
10-32 1.25" BH (steel) 91440A516 6
10-32 1/8" thick nut 90480A195 12
10-32 Flange nut 90389A113 3
10-32 threaded rod (3ft) 98838A011 4 x 8"+1 x 9.5"
Catch Washer 7421K12 1
1.5" OD washer 92141A035 1
Small Spring (3/4") (36" ×5) 9662K16 6
K26 (11") (5.5" piece) 9637K26 1
K25 (11") (5.5" piece) 9637K25 1
1.375" ID Plunger Tube (3ft) 53945K21 5
Alum tube 0.509" ID (3ft) 9390N15 1
1.375" OD O-RING 9452K87 6
1.0" OD O-RING FAT 9452K81 3
0.5" OD O-RING FAT 9452K18 3
0.5" OD O-RING 9452K21 12

Key Features

  • Single-shot configuration with Z-Shell turn-lock mechanism

  • Airtight seal for consistent power and performance

  • Supports standard, Mega, Mega XL, and Rival formats

  • Includes shell holder attachment for staged reloads

  • Simple, lightweight build suitable for casual and competitive use
