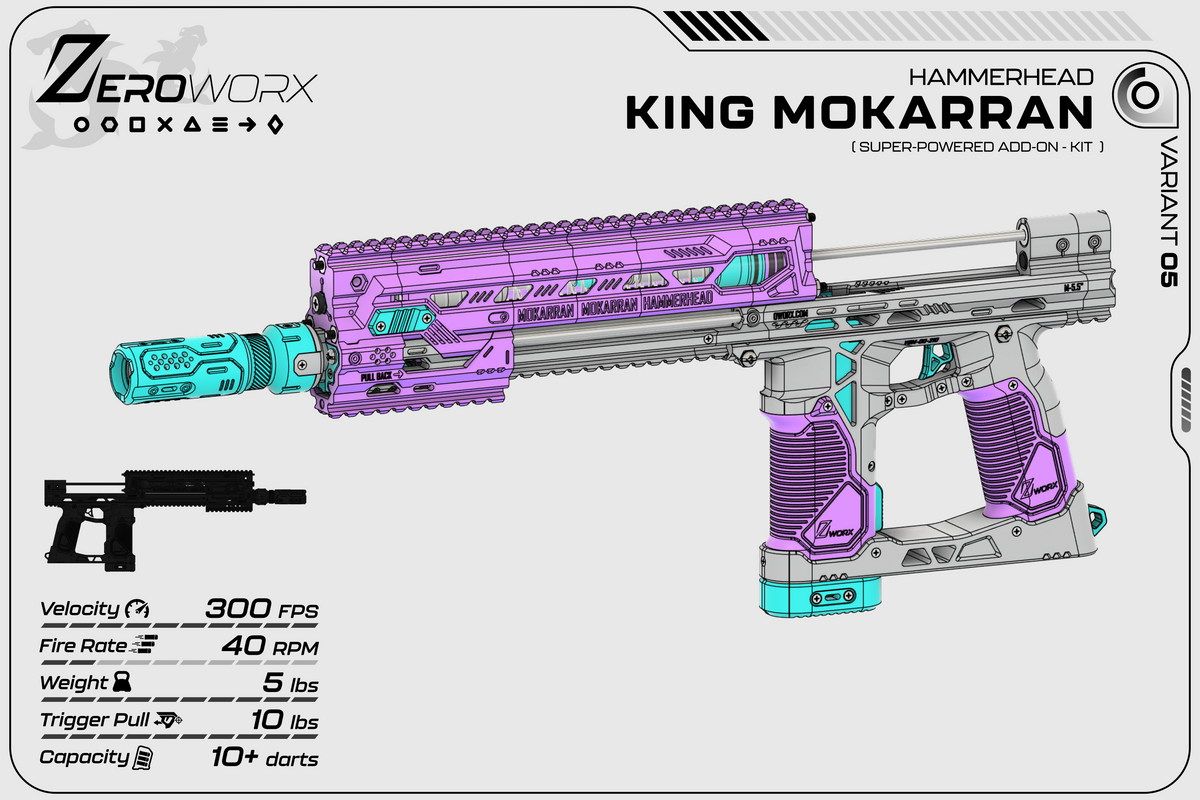

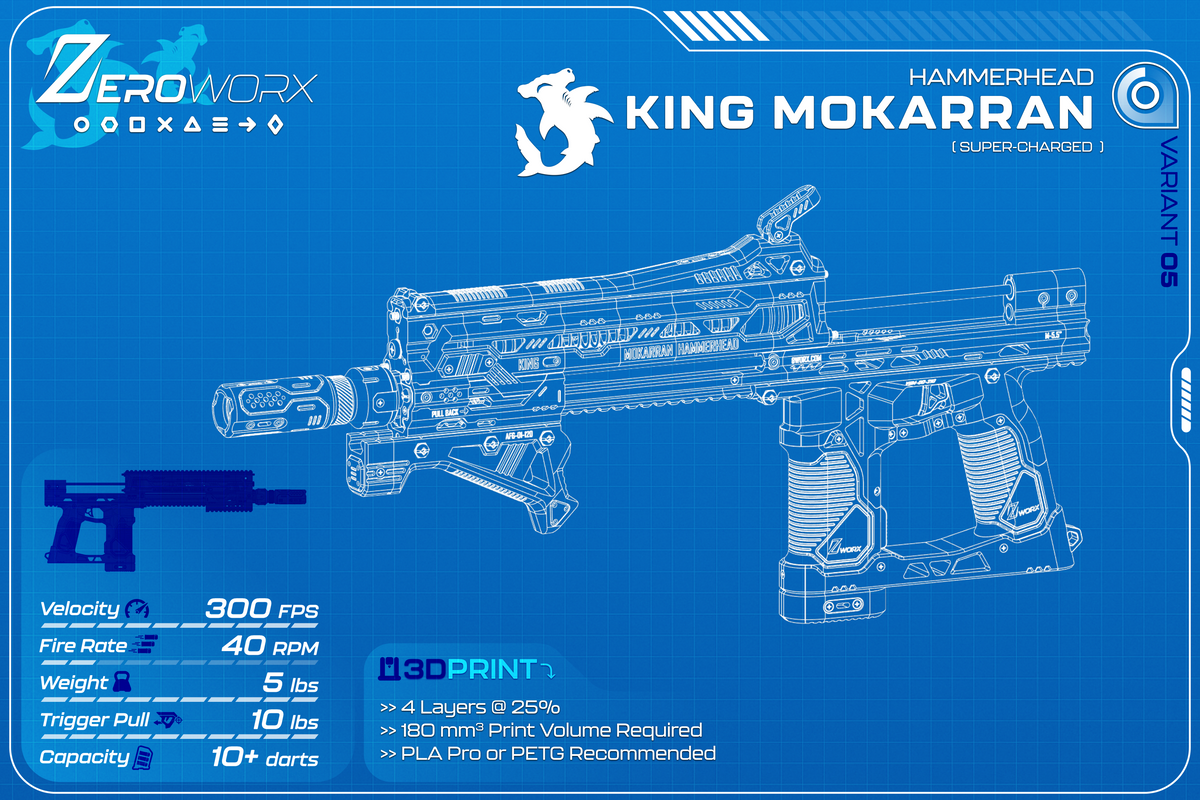

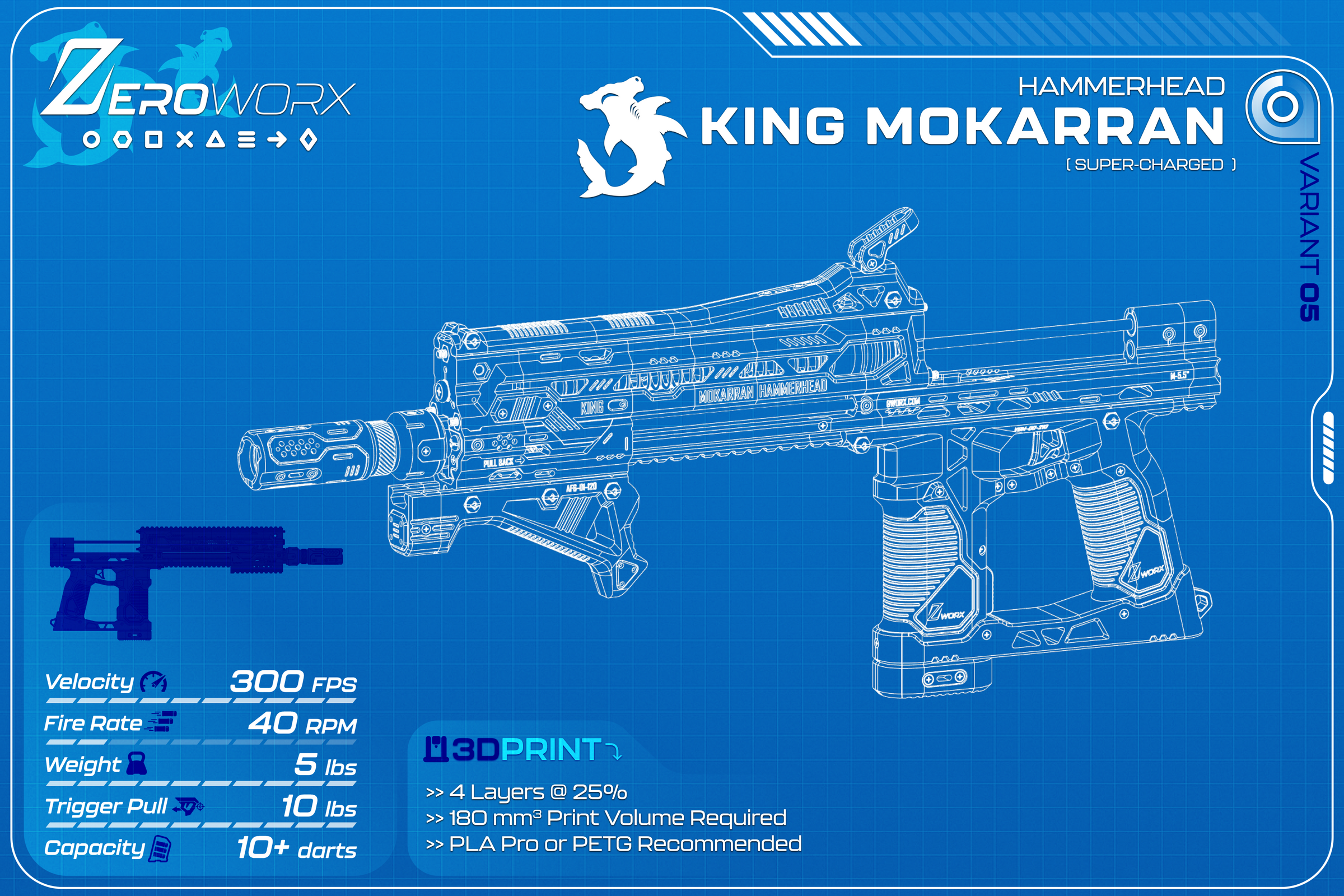

KING MOKARRAN
Maximum-Draw High-Volume Variant
Description
King Mokarran is an extended-draw, high-volume variant of the Hammerhead platform designed for maximum plunger travel and output. The 12" + 4" spacer stack creates a 16" frame, supporting a 5.5" draw length and significantly increased compression and travel compared to the standard configuration. Structural elements and mounting points are reinforced to accommodate higher loads and longer mechanical stroke.
Hardware Kit
Part |
McMaster # |
Qty required (+ Hammerhead Hardware) |
|---|---|---|
| 4" Spacer (steel) | 93265A042 | 2 |
| 6" Connecting Rod (stainless) | 7417N59 | 2 |
| 1" Spacer (steel) | 93265A476 | 3 |
| K26 (11") | 9637K26 | 1 |
| K25 (11") | 9637K25 | 1 |
| Alum tube 0.509" ID (3ft) | 9390N15 | 1 x 21" |
Key Features
-
5.5" draw for significantly increased plunger volume and energy transfer
-
16" spacer frame using 12" + 4" components for long travel and rigidity
-
Reinforced structure and mounts for higher spring forces and repeated impact
-
High-output configuration intended for experienced builders
