BLASTER TECH TREE

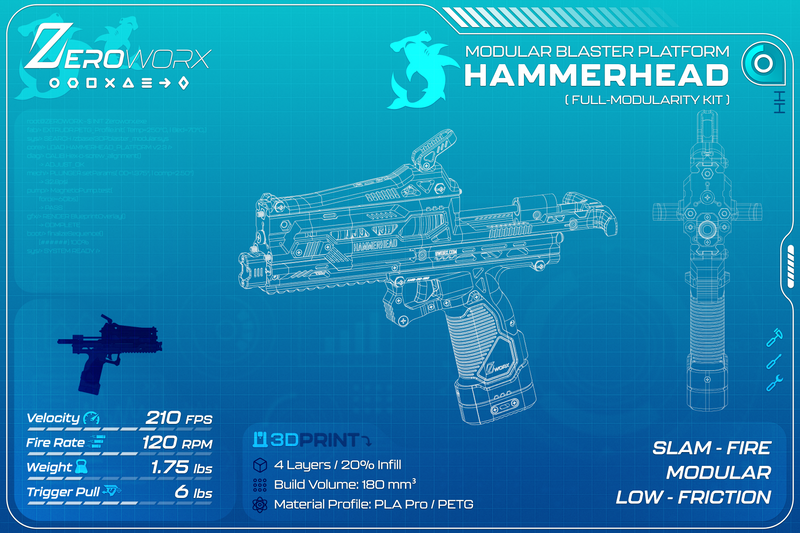

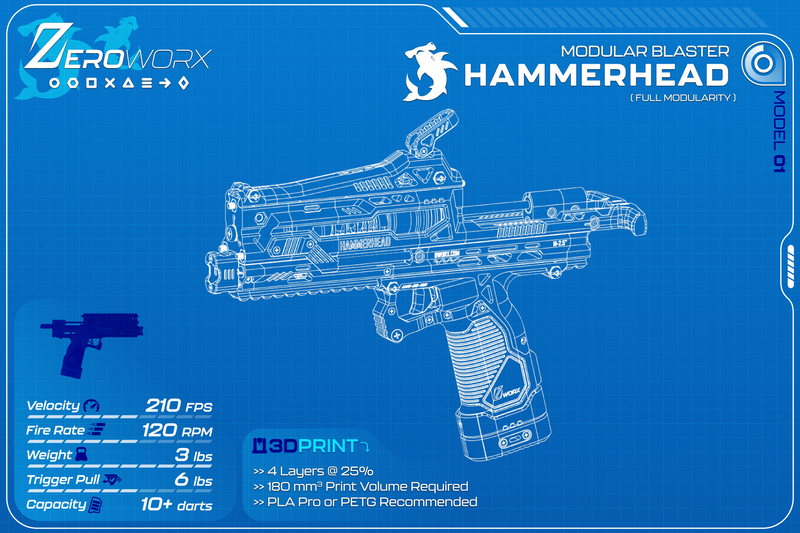

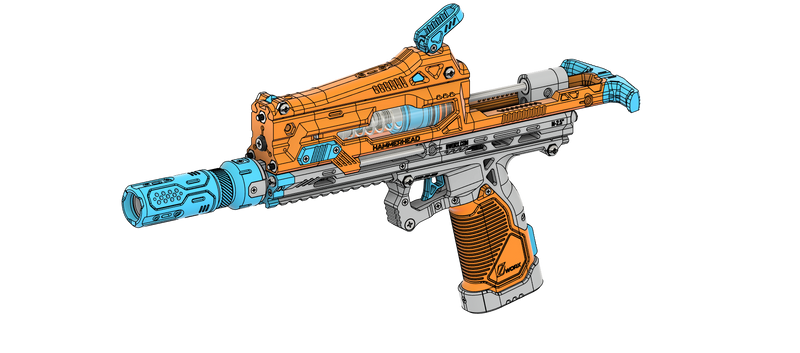

Hammerhead

Hammerhead Platform

Files $20.00 Hardware $120.00 Full Build $120.00
Hammerhead Tier 1
Overview
The Hammerhead is a foundational modular foam dart platform built for experimentation, durability, and straightforward assembly. Its standardized architecture allows every component to be swapped, tuned, and upgraded while maintaining reliable alignment and compatibility. The system is designed for rapid iteration, letting builders change almost everything without altering the core structure.
Features
Modular architecture with interchangeable components

Rapid configuration and tuning of plunger tubes, barrels, springs, and layouts

Durable metal hardware and catches designed for repeated use

STL files pre-oriented for support-free printing and quick assembly
Hardware Kit
  • Flat head screw - 4-40 x 3/8"Qty 24
  • Flat head screw - 4-40 x 1"Qty 12
  • Flat head screw - 10-32 x 3/4"Qty 9
  • Button head screw - 10-32 x 1.25"Qty 12
  • Button head screw - 10-32 x 1.75"Qty 6
  • Button head screw - 10-32 x 3"Qty 6
  • Hex nut - 10-32 x 1/8" thickQty 24
  • Flange nut - 10-32Qty 6
  • Threaded rod - 10-32, 3 ft stockQty 1 x 1.5" + 1 x 3" + 3 x 5" + 6 x 8" + 3 x 12" + 1 x 10.5"
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 1
  • Washer - 1.5" ODQty 1
  • Washer - Anchor washerQty 1
Remora

Remora Platform

Files $0.00 Hardware $30.00 Full Build $50.00
Remora Tier 0
Overview
The Remora is a compact, underbarrel-compatible blaster platform designed to integrate seamlessly with the Zeroworx attachment ecosystem. Much like its ocean namesake, the Remora is built to adapt to larger systems, mounting securely while adding independent firing capability without compromising balance or usability.
The Remora retains the core mechanical reliability of the Hammerhead architecture, featuring a metal catch system and a simplified direct-plunger layout. Its lightweight construction and reduced hardware footprint make it an efficient auxiliary platform for builders looking to expand their loadout with minimal added complexity.
Features
4 rod frame construction for extra durability
Hardware Kit
  • Flat head screw - 4-40 x 3/8"Qty 12
  • Flat head screw - 4-40 x 1.25"Qty 9
  • Button head screw - 10-32 x 1.25"Qty 6
  • Hex nut - 10-32 x 1/8" thickQty 12
  • Flange nut - 10-32Qty 3
  • Threaded rod - 10-32, 3 ft stockQty 5 x 8"
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 1
  • Washer - 1.5" ODQty 1
  • Compression spring - 3/4" OD, 36" stockQty 6
  • Compression spring - K25, 11" stock, cut to 5.5"Qty 1
  • Tube - 1.375" ID, 3 ft stockQty 5
  • Tube - 0.509" ID, 3 ft stockQty 1
Scoophead

Scoophead Platform

Files $5.00 Hardware $60.00 Full Build $120.00
Hammerhead Tier 1
Overview
The Scoophead is a compact reinterpretation of the Hammerhead platform designed for either single-shot breach loading or a bullpup magazine-fed configuration. The shifted barrel layout maintains a long internal barrel path within a reduced footprint, offering strong performance while remaining simple to assemble, service, and modify. Files are complete and standalone, with attachments included for magazine-fed use and clip-on dart staging.
Features
Dual 3" spacers must be tolerance-matched to create a true 6" smooth spacer. 6" spacer alternatives exist but are higher cost. Expect some spacer surplus if building your own matched
Hardware Kit
  • 4-40 3/8" FH (steel)Qty 24
  • 4-40 1" FH (steel)Qty 12
  • 10-32 3/4" FH (steel)Qty 6
  • 10-32 1.25" BH (steel)Qty 6
  • 10-32 1.75" BHQty 6
  • 10-32 1/8" thick nutQty 12
  • 10-32 Flange nutQty 3
  • 10-32 threaded rod (3ft)Qty 2 x 1" + 1 x 1.5" + 1 x 3" + 2 x 5" + 3 x 8" + 2 x 12"
  • Catch WasherQty 1
  • 1.5" OD washerQty 1
  • 4" Spacer (steel)Qty 1
  • 3" Spacer (steel)Qty 4

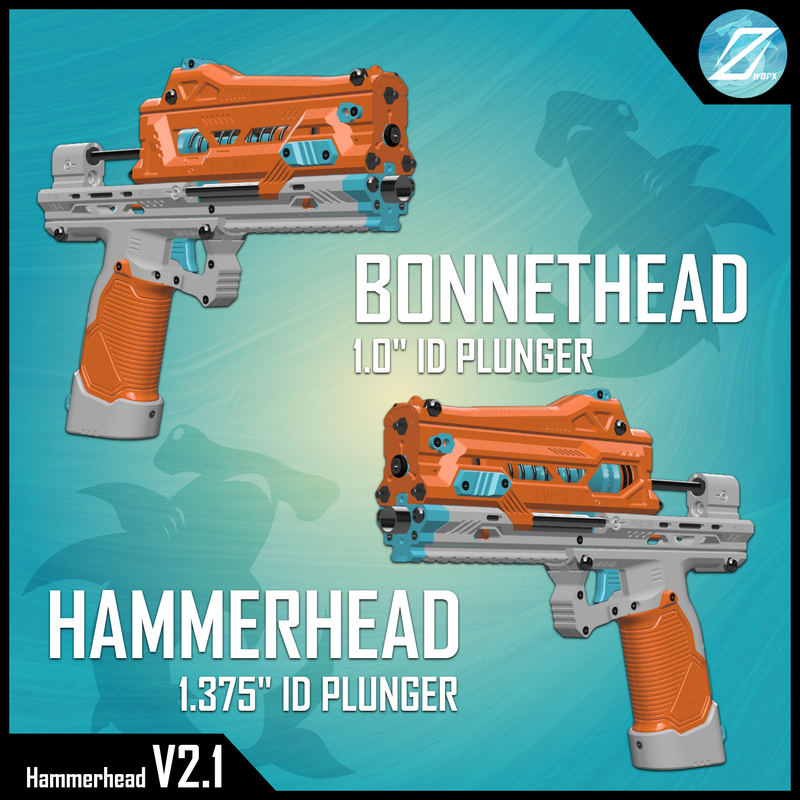

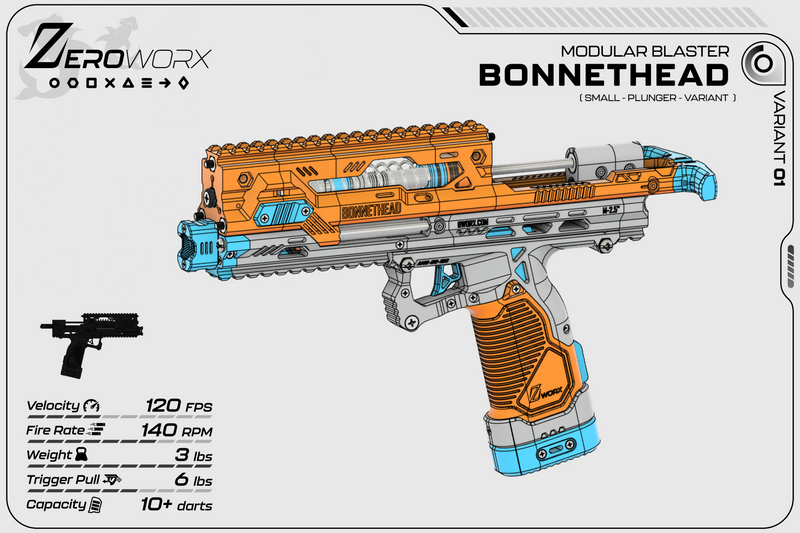

Bonnethead

Bonnethead Platform

Files $5.00 Hardware $60.00 Full Build $120.00
Hammerhead Tier 1
Overview
The Bonnethead is a compact version of the Hammerhead platform that preserves full plunger geometry and output in a shorter frame. Using a 3"+3" paired spacer and a 4" spacer, the overall length is reduced while maintaining rigidity and alignment. The design keeps the same power profile and reliability as the full-size platform in a lighter, more maneuverable format. Unique Turn Around and Slide components define its compact operation and layout.
Features
Dual 3" spacers must be tolerance-matched to create a true 6" smooth spacer. 6" spacer alternatives exist but are higher cost. Expect some spacer surplus if building your own matched
Hardware Kit
  • 4-40 3/8" FH (steel)Qty 24
  • 4-40 1" FH (steel)Qty 12
  • 10-32 3/4" FH (steel)Qty 6
  • 10-32 1.25" BH (steel)Qty 6
  • 10-32 1.75" BHQty 6
  • 10-32 1/8" thick nutQty 12
  • 10-32 Flange nutQty 3
  • 10-32 threaded rod (3ft)Qty 2 x 1" + 1 x 1.5" + 1 x 3" + 2 x 5" + 3 x 8" + 2 x 12"
  • Catch WasherQty 1
  • 1.5" OD washerQty 1
  • 4" Spacer (steel)Qty 1
  • 3" Spacer (steel)Qty 4
Chimera Royal Typhon

Chimera Royal Typhon Platform

Files $5.00 Hardware $90.00 Full Build $300.00
Chimera Tier 3
Overview
The Royal Typhon is a high-performance expansion for the Chimera platform, extending draw to a full 5.5" for maximum plunger volume and output. It retains the Chimera hybrid turnaround airflow architecture and reinforced printed catch system while delivering the highest-performance configuration available within the lineup.
Features
3" extended draw = 120% Increased Plunger Volume
Hardware Kit
  • Tube - 0.509" ID, 3 ft stockQty 1 x 21"
  • Threaded rod - 10-32, 3 ft stockQty 5 x 22" + 1 x 9.5" + 5 x 1"
  • Spacer - 3"Qty 10
  • Compression spring - K26, 11" stockQty 1
  • Compression spring - K25, 11" stockQty 1
  • Tube - 1.375" ID, 3 ft stockQty 1 x 9.75"
Chimera Typhon

Chimera Typhon Platform

Files $5.00 Hardware $100.00 Full Build $240.00
Chimera Tier 2
Overview
The Typhon Add-On increases the Chimera platform’s draw length by 1", providing greater plunger volume and increased performance while retaining the platform’s hybrid turnaround airflow architecture and reinforced printed catch system. The extension preserves compatibility with existing Chimera configurations while maintaining the platform’s compact modular layout and independent structural geometry.
Features
1" extended draw = 40% Increased Plunger Volume
Hardware Kit
  • Button head screw - 10-32 x 3.5"Qty 6
  • Spacer - 4"Qty 5
  • Spacer - 12"Qty 1
  • Threaded rod - 10-32, 3 ft stockQty 5 x 17.5"
  • Compression spring - K26, 11" stock, cut to 8.25"Qty 1
  • Compression spring - K25, 11" stock, cut to 8.25"Qty 1
  • Tube - 0.509" ID, 3 ft stockQty 1 x 17.5"
  • Tube - 1.375" ID, 3 ft stockQty 1 x 6.5"
Chimera

Chimera Platform

Files $10.00 Hardware $100.00 Full Build $180.00
Chimera Tier 1
Overview
The Chimera is a hybrid Zeroworx platform combining elements of the Hammerhead, Marlin, and Swordfish systems into a single modular architecture.
The Chimera uses a reinforced printed catch architecture designed around high-strength engineering materials such as Nylon, PA-CF, or similar composite filaments. The platform supports multiple priming geometries and maintains compatibility with the broader Zeroworx modular ecosystem.
Features
Swordfish and Chimera catch components should be printed in durable engineering materials such as Nylon or Polycarbonate. PLA is not recommended for regular use.
Hardware Kit
  • Flat head screw - 4-40 x 3/8"Qty 24
  • Flat head screw - 4-40 x 1"Qty 12
  • Flat head screw - 10-32 x 3/4"Qty 9
  • Button head screw - 10-32 x 1.25"Qty 12
  • Button head screw - 10-32 x 1.75"Qty 6
  • Button head screw - 10-32 x 3"Qty 6
  • Hex nut - 10-32 x 1/8" thickQty 24
  • Flange nut - 10-32Qty 6
  • Threaded rod - 10-32, 3 ft stockQty 5" + 5 × 13.5"
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 1
  • Washer - 1.5" ODQty 1
  • Spacer - 3"Qty 5
Royal Broadbill Swordfish

Royal Broadbill Swordfish Platform

Files $5.00 Hardware $100.00 Full Build $300.00
Swordfisn Tier 3
Overview
The Royal Broadbill is a high-performance expansion for the Swordfish platform, extending draw to a full 5.5" for maximum plunger volume and output. It retains the Swordfish independent piston architecture and reinforced printed catch system while delivering the highest-performance configuration available within the lineup.
Swordfish and Chimera catch components should be printed in durable engineering materials such as Nylon or Polycarbonate. PLA is not recommended for regular use.
Features
Swordfish and Chimera catch components should be printed in durable engineering materials such as Nylon or Polycarbonate. PLA is not recommended for regular use.
Hardware Kit
  • Tube - 0.509" ID, 3 ft stockQty 1 x 21"
  • Spacer - 12"Qty 1
  • Spacer - 3"Qty 6
  • Compression spring - K26, 11" stockQty 1
  • Compression spring - K25, 11" stockQty 1
  • Tube - 1.375" ID, 3 ft stockQty 1 x 9.75"
Broadbill Swordfish

Broadbill Swordfish Platform

Files $5.00 Hardware $50.00 Full Build $200.00
Swordfish Tier 2
Overview
The Broadbill Add-On increases the Swordfish platform’s draw length by 1", providing greater plunger volume and increased performance while retaining the platform’s independent piston architecture and reinforced printed catch system. The extension preserves compatibility with existing Swordfish configurations and maintains support for both bolt-action and central pull-back priming layouts.
Features
Swordfish and Chimera catch components should be printed in durable engineering materials such as Nylon or Polycarbonate. PLA is not recommended for regular use.
Hardware Kit
  • Button head screw - 10-32 x 3.5"Qty 6
  • Spacer - 4"Qty 4
  • Compression spring - K26, 11" stock, cut to 8.25"Qty 1
  • Compression spring - K25, 11" stock, cut to 8.25"Qty 1
  • Tube - 0.509" ID, 3 ft stockQty 1 x 17.5"
  • Tube - 1.375" ID, 3 ft stockQty 1 x 6.5"
Swordfish

Swordfish Platform

Files $10.00 Hardware $100.00 Full Build $180.00
Swordfish Tier 1
Overview
The Swordfish is a direct-plunger blaster platform designed around a central spacer architecture, allowing the piston assembly to operate independently from the main structural rods. Unlike the Marlin and Hammerhead systems, the Swordfish uses a reinforced 3D-printed catch system that requires durable engineering-grade materials such as Nylon, PA-CF, or similar composites.
The platform maintains compatibility with multiple Zeroworx configuration styles, supporting both traditional bolt-action priming and central-spacer pull-back priming layouts inspired by Skewer-style systems.
Features
Swordfish and Chimera catch components should be printed in durable engineering materials such as Nylon or Polycarbonate. PLA is not recommended for regular use.
Hardware Kit
  • Flat head screw - 4-40 x 3/8"Qty 24
  • Flat head screw - 4-40 x 1"Qty 12
  • Flat head screw - 10-32 x 3/4"Qty 9
  • Button head screw - 10-32 x 1.25"Qty 12
  • Button head screw - 10-32 x 1.75"Qty 6
  • Button head screw - 10-32 x 3"Qty 6
  • Hex nut - 10-32 x 1/8" thickQty 24
  • Flange nut - 10-32Qty 6
  • Threaded rod - 10-32, 3 ft stockQty 1 x 3" + 6 x 8" + 3 x 5"
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 1
  • Washer - 1.5" ODQty 1
  • Spacer - 3"Qty 4
Marlin X2P

Marlin X2P Platform

Files $5.00 Hardware $40.00 Full Build $200.00
Marlin Tier x2
Overview
The Marlin X2P expands the direct-plunger architecture into a two-barrel configuration while retaining the metal catch durability and magnetic pump compatibility of the Hammerhead platform. The offset barrel layout preserves attachment ecosystem compatibility (VGM-00-210 X2 is the only receiver at the moment for the X2P series) and the lightweight dual-plunger format delivers higher shot capacity without significant added complexity or hardware.
Advanced Builders Recommended
This blaster is more of a "can we" instead of "should we" scenario. Don't expect it to work perfectly and be patient with priming things when it gets stuck. It is very difficult to prime if you put in powerful springs, I find that the springs out of rival blaster work the best. So don't expect crazy power but if you like the gimmick I would recommend! Double Marlin!!!
Features
Key Features

Dual direct-plunger configuration

Staged-trigger capability for sequential firing


Offset barrel layout compatible with Zeroworx attachment ecosystem

Full-metal catch system for durability under load
Hardware Kit
  • Threaded rod - 10-32, 3 ft stockQty 3
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 2
  • Washer - 1.5" ODQty 2
  • Compression spring - K26, 11" stock, cut to 5.5"Qty 1
  • Compression spring - K25, 11" stock, cut to 5.5"Qty 1
  • Tube - 1.0" ID, 3 ft stockQty 2 x 5"
  • Tube - 0.509" ID, 3 ft stockQty 2 x 7"
  • O-ring - 1.0" OD, fat profileQty 12

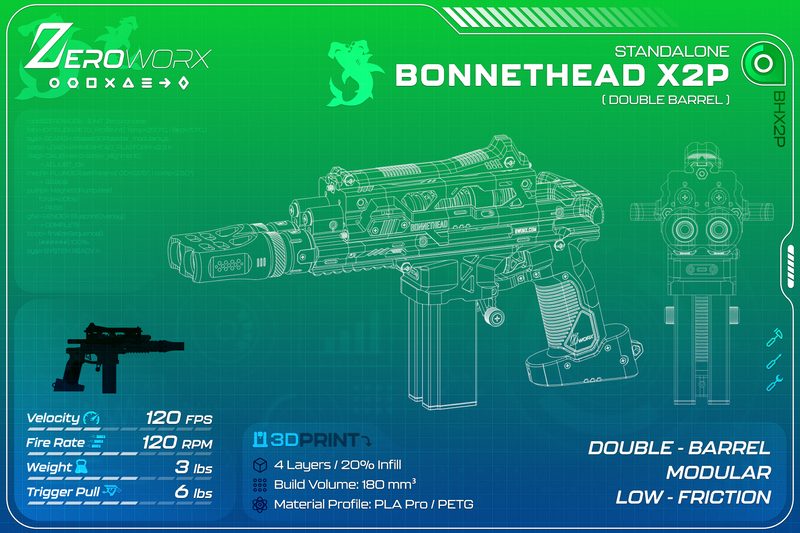

Bonnethead X2P

Bonnethead X2P Platform

Files $5.00 Hardware $30.00 Full Build $150.00
Bonnethead Tier x2
Overview
The Bonnethead X2P is a dual-barrel expansion of the Bonnethead platform built around two 1.0" ID plunger tube systems with staged-trigger firing. It offers increased shot capacity in a compact layout while keeping the spacer-driven Bonnethead frame style and reduced hardware profile. The system supports lightweight front-end components and delivers sequential control without altering the core platform.
Advanced Builders Recommended
This blaster is more of a "can we" instead of "should we" scenario. Don't expect it to work perfectly and be patient with priming things when it gets stuck. It is very difficult to prime if you put in powerful springs, I find that the springs out of rival blaster work the best. So don't expect crazy power but if you like the gimmick I would recommend! Double Bonnethead!!!
Features
Key Features

Dual 1.0" plunger tube configuration

Staged-trigger control for sequential firing

Compact spacer-based frame layout

Low hardware count for a two-shot system

Compatible with lightweight front-end configurations
Hardware Kit
  • Threaded rod - 10-32, 3 ft stockQty 1 x 3"
  • Washer - 5/8" ID x 1" OD x 1/8"Qty 1
  • Washer - 1.5" ODQty 1
  • Compression spring - K25, 11" stock, cut to 5.5"Qty 1
  • Compression spring - K26, 11" stock, cut to 5.5"Qty 1
  • Tube - 1.0" ID, 3 ft stockQty 2 x 5"
  • Tube - 0.509" ID, 3 ft stockQty 1 x 7"
  • O-ring - 1.0" OD, fat profileQty 12
Royal Longbill Marlin

Royal Longbill Marlin Platform

Files $5.00 Hardware $30.00 Full Build $250.00
Marlin Tier 3
Overview
The Royal Longbill is a high-performance expansion for the Marlin platform, extending draw to a full 5.5" for maximum plunger volume and output. It maintains the direct-plunger architecture and attachment compatibility while delivering the strongest performance available with minimal additional hardware.
Features
Key Features

Full 5.5" draw for maximum plunger volume and velocity

Maintains direct-plunger simplicity and metal catch durability

Compatible with Marlin attachments and configurations

Higher performance with minimal additional hardware
Hardware Kit
  • Compression spring - K26, 11" stockQty 1
  • Compression spring - K25, 11" stockQty 1
  • Threaded rod - 10-32, 3 ft stockQty 6 x 13.5"
  • Tube - 1.375" ID, 3 ft stockQty 1 x 9.75"
Longbill Marlin

Longbill Marlin Platform

Files $5.00 Hardware $30.00 Full Build $180.00
Marlin Tier 2
Overview
The Longbill Add-On increases the Marlin’s draw length by 1", providing greater plunger volume and higher output while retaining the direct-plunger layout and full-metal catch system. It is designed for users who want additional performance without altering the platform's core structure or attachment compatibility.
Features
Key Features

Adds 1" of prime for increased plunger volume and performance

Retains direct-plunger architecture and metal catch system

Full compatibility with Marlin platform and attachments

Low hardware count for a higher-output configuration
Hardware Kit
  • Button head screw - 10-32 x 3.5"Qty 6
  • Spacer - 4"Qty 4
  • Threaded rod - 10-32, 3 ft stockQty 1 x 6" + 1 x 10.5"
  • Compression spring - K26, 11" stock, cut to 8.25"Qty 1
  • Compression spring - K25, 11" stock, cut to 8.25"Qty 1
  • Tube - 1.375" ID, 3 ft stockQty 1 x 6.5"

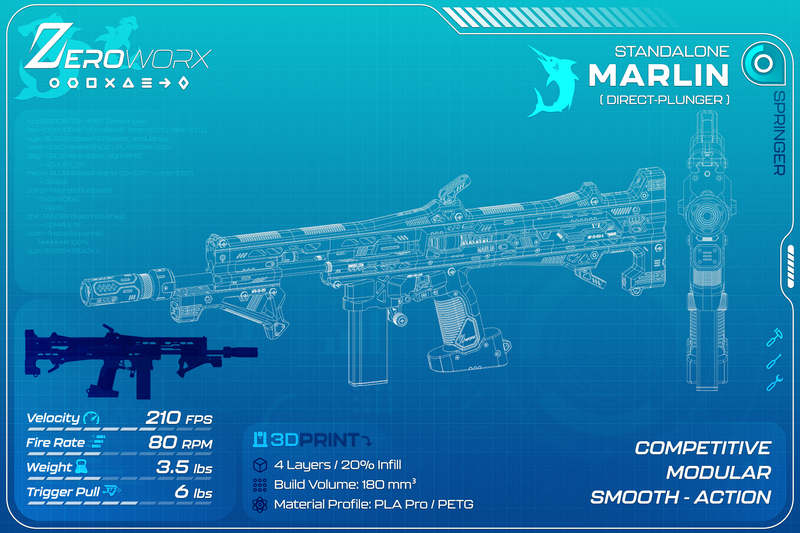

Marlin

Marlin Platform

Files $10.00 Hardware $60.00 Full Build $180.00
Marlin Tier 1
Overview
MARLIN
Direct-Plunger Platform
Description
The Marlin is a direct-plunger blaster built with the same catch architecture used in the Hammerhead platform, retaining full compatibility with the magnetic pump system. It functions similarly to traditional direct-plunger blasters such as the Caliburn or Talon Claw but features an offset barrel layout to remain fully compatible with the Zeroworx attachment ecosystem. A full-metal catch provides durability for high-performance tuning and repeated use.
Features
Feature details coming soon.
Hardware Kit
  • 4-40 3/8" FH (steel)Qty 24
  • 4-40 1" FH (steel)Qty 12
  • 10-32 1.25" BH (steel)Qty 12
  • 10-32 1.75" BHQty 6
  • 10-32 3" BHQty 6
  • 10-32 1/8" thick nutQty 24
  • 10-32 Flange nutQty 6
  • 10-32 threaded rod (3ft)Qty 1 x 3" + 6 x 8" + 3 x 5"
  • Catch WasherQty 1
  • 1.5" OD washerQty 1
  • 3" Spacer (steel)Qty 4
  • 1" SpacerQty 6

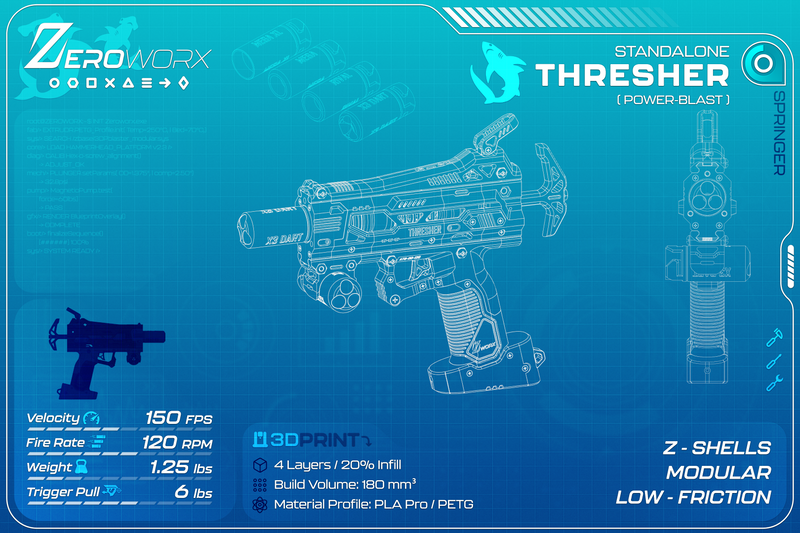

Thresher

Thresher Platform

Files $5.00 Hardware $40.00 Full Build $60.00
Thresher Tier 1
Overview
The Thresher is a single-shot launcher built around the Z-Shell turn-lock mechanism for fast reloads and adaptable ammo types. Its sealed-shell interface allows reliable performance while enabling quick swaps between standard Nerf darts, Mega, Mega XL, and Rival formats without altering the core build. A shell holder attachment supports staged reloads, and the lightweight construction keeps operation simple while remaining competitive.
Features
Feature details coming soon.
Hardware Kit
  • 4-40 3/8" FH (steel)Qty 12
  • 4-40 1" FH (steel)Qty 6
  • 10-32 3/4" FH (steel)Qty 6
  • 10-32 1.25" BH (steel)Qty 6
  • 10-32 1/8" thick nutQty 12
  • 10-32 Flange nutQty 3
  • 10-32 threaded rod (3ft)Qty 4 x 8" + 1 x 9.5"
  • Catch WasherQty 1
  • 1.5" OD washerQty 1
  • Small Spring (3/4") (36" ×5)Qty 6
  • K26 (11") (5.5" piece)Qty 1
  • K25 (11") (5.5" piece)Qty 1
Royal Mokarran Hammerhead

Royal Mokarran Hammerhead Platform

Files $5.00 Hardware $60.00 Full Build $300.00
Hammerhead Tier 3
Overview
Royal Mokarran is an extended-draw, high-volume variant of the Hammerhead platform designed for maximum plunger travel and output. The 12" + 4" spacer stack creates a 16" frame, supporting a 5.5" draw length and significantly increased compression and travel compared to the standard configuration. Structural elements and mounting points are reinforced to accommodate higher loads and longer mechanical stroke.
Features
3" extended draw = 120% Increased Plunger Volume
Hardware Kit
  • 4" Spacer (steel)Qty 2
  • 6" Connecting Rod (stainless)Qty 2
  • 1" Spacer (steel)Qty 3
  • K26 (11")Qty 1
  • K25 (11")Qty 1

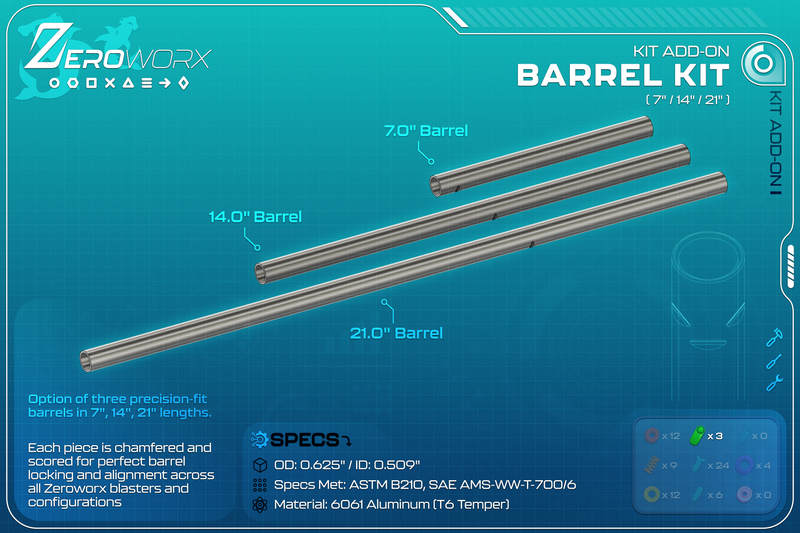

  • Alum tube 0.509" ID (3ft)Qty 1 x 21"

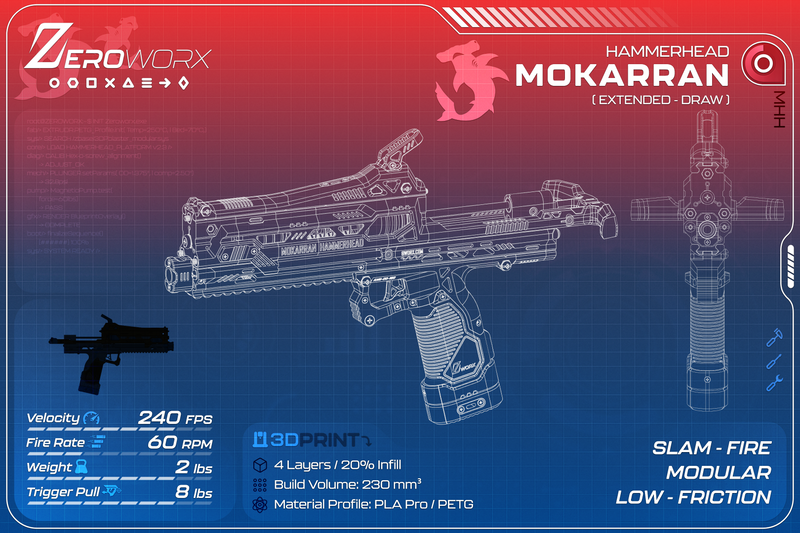

Mokarran Hammerhead

Mokarran Hammerhead Platform

Files $5.00 Hardware $80.00 Full Build $240.00
Hammerhead Tier 2
Overview
The Mokarran is a performance-focused expansion of the Hammerhead platform that increases draw length from 2.5" to 3.5", providing greater plunger volume and higher output while remaining compatible with the standard architecture. Spacer length is extended using 12" and 4" components instead of the standard 9" and 3" layout, maintaining rigidity and alignment under increased load. The design retains the same modular receiver geometry, build logic, and serviceability as the original platform.
Features
1" extended draw = 40% Increased Plunger Volume
Hardware Kit
  • Button head screw - 10-32 x 3.5"Qty 6
  • Spacer - 4"Qty 6
  • Connecting rod - 12"Qty 2
  • Compression spring - K26, 11" stock, cut to 8.25"Qty 1
  • Compression spring - K25, 11" stock, cut to 8.25"Qty 1
  • Tube - 1.375" ID, 3 ft stockQty 1 x 7"

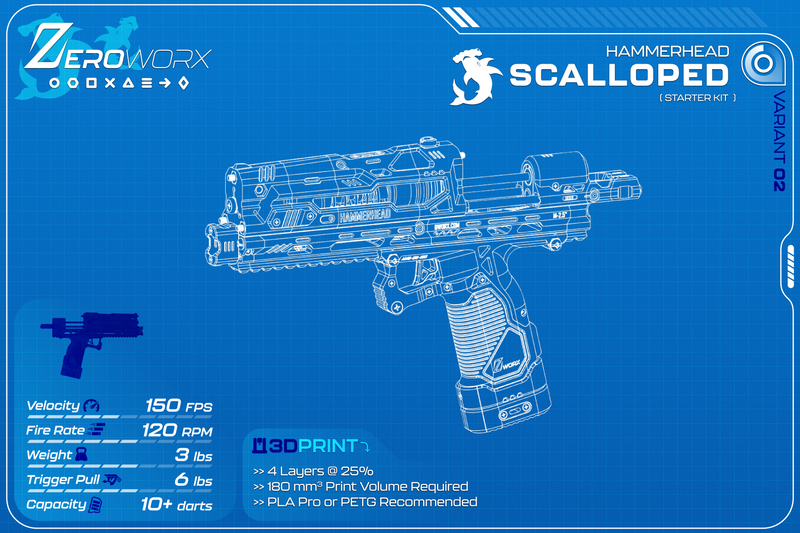

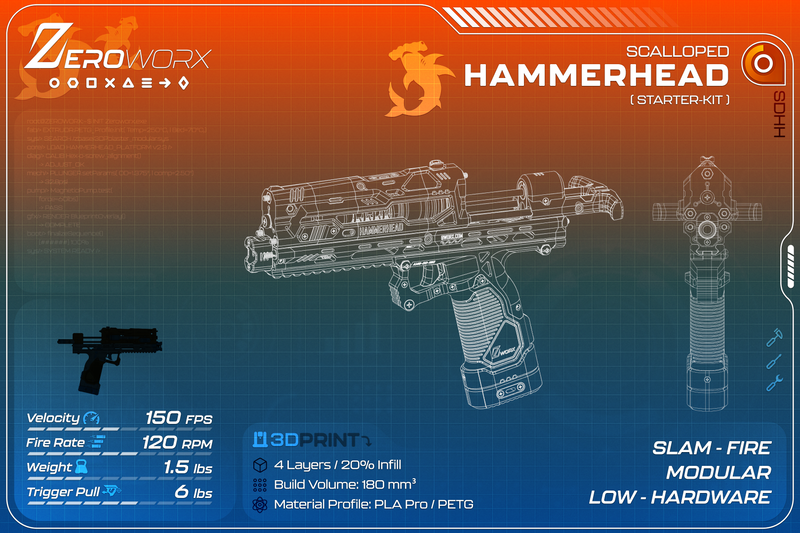

Scalloped Hammerhead

Scalloped Hammerhead Platform

Files $5.00 Hardware $60.00 Full Build $120.00
Hammerhead Tier 1
Overview
The Scalloped Hammerhead is a simplified, lightweight variant designed for new builders and demonstration setups. It removes the internally threaded 9" spacers used in the standard model, reducing cost and complexity while maintaining stability through an alternative reinforcement system. A stylized slide referencing the crest from Hammerhead V1.7 provides a distinct visual profile. This slide is intentionally unique and not aesthetically matched to standard Hammerhead attachments, though functional compatibility is retained.
Features
Unique Silhouette and Low Hardware complexity
Hardware Kit
  • 4-40 3/8" FH (steel)Qty 24
  • 4-40 1" FH (steel)Qty 12
  • 10-32 3/4" FH (steel)Qty 6
  • 10-32 1.25" BH (steel)Qty 6
  • 10-32 1.75" BHQty 6
  • 10-32 1/8" thick nutQty 12
  • 10-32 Flange nutQty 3
  • 10-32 threaded rod (3ft)Qty 2 x 1" + 1 x 1.5" + 1 x 3" + 2 x 5" + 3 x 8" + 2 x 12"
  • Catch WasherQty 1
  • 1.5" OD washerQty 1
  • 4" Spacer (steel)Qty 1
  • 3" Spacer (steel)Qty 4
