DOUBLE X2P
Dual Direct-Plunger Platform
Description

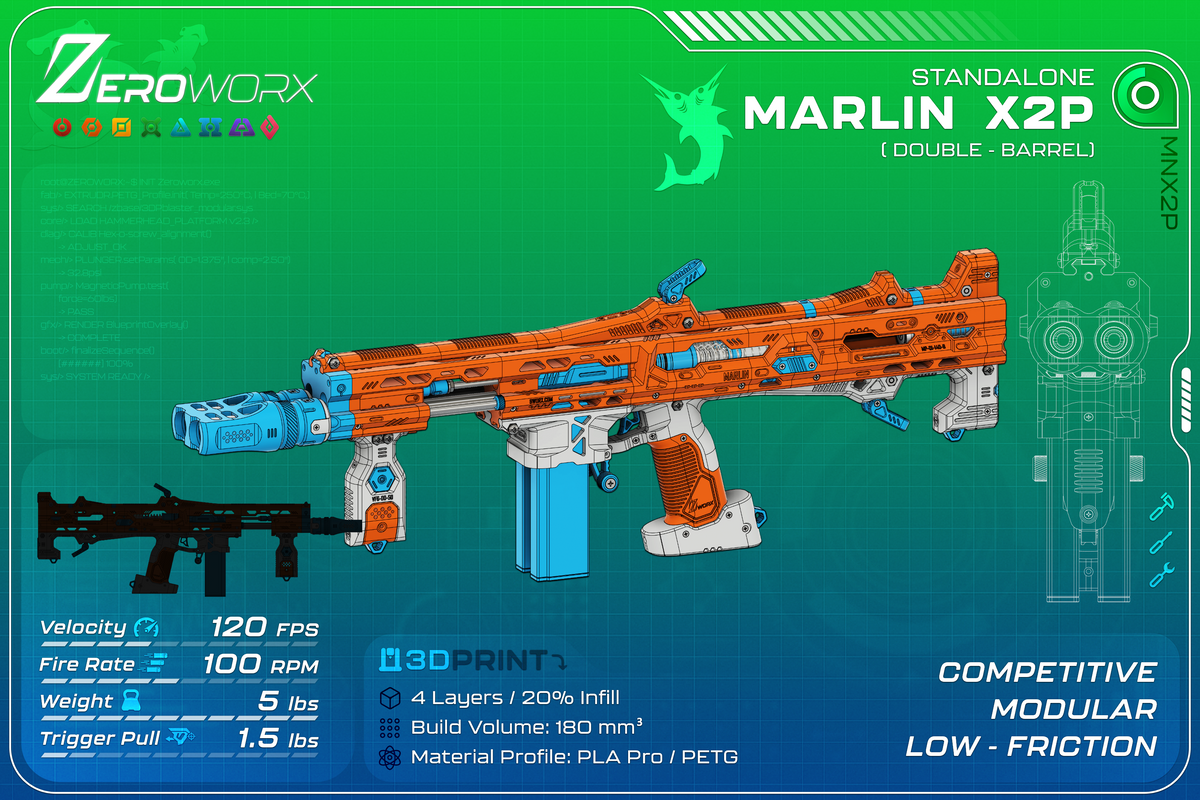

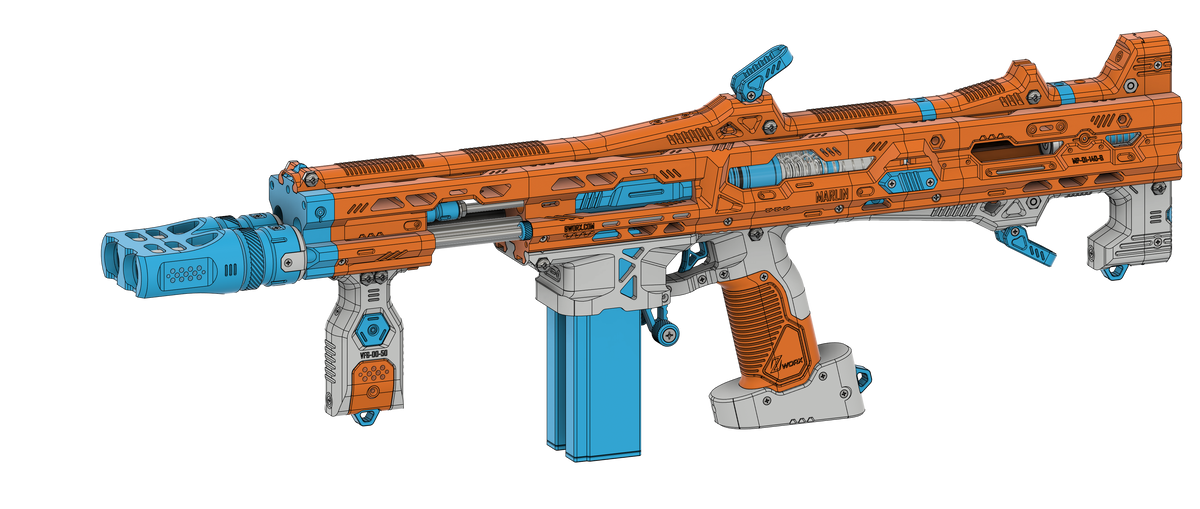

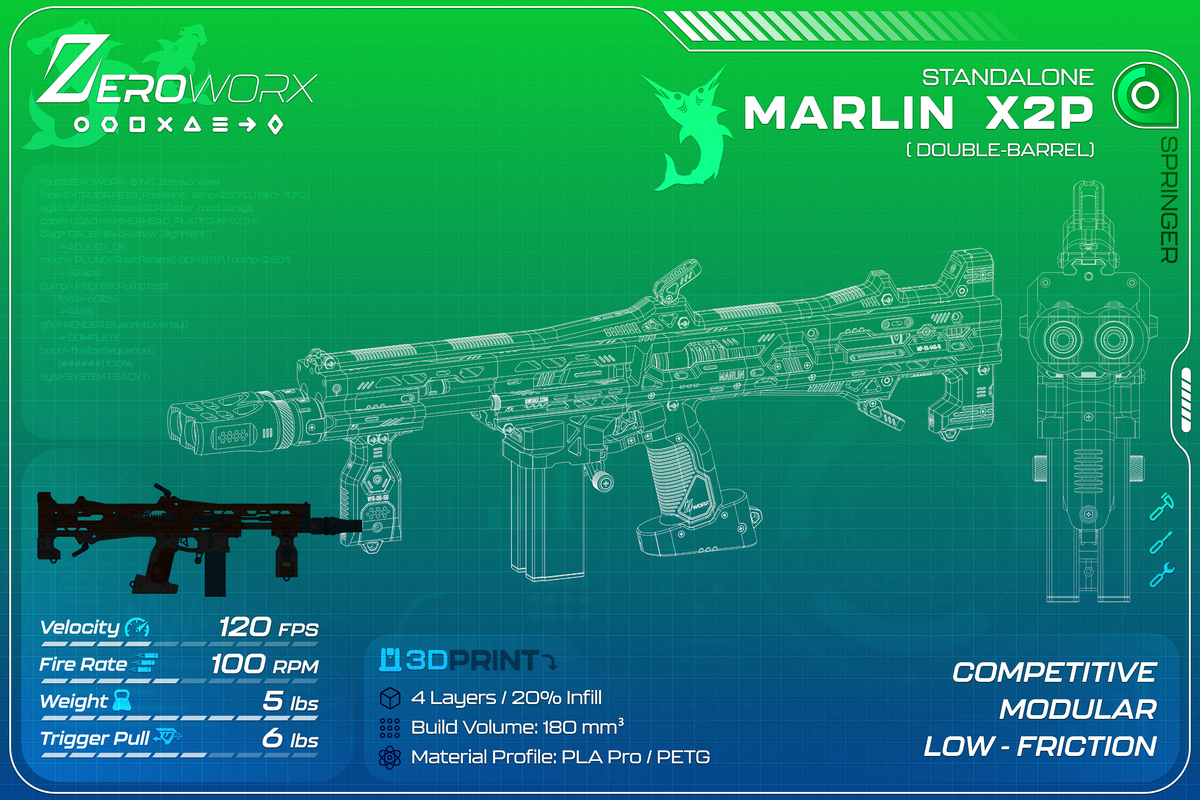

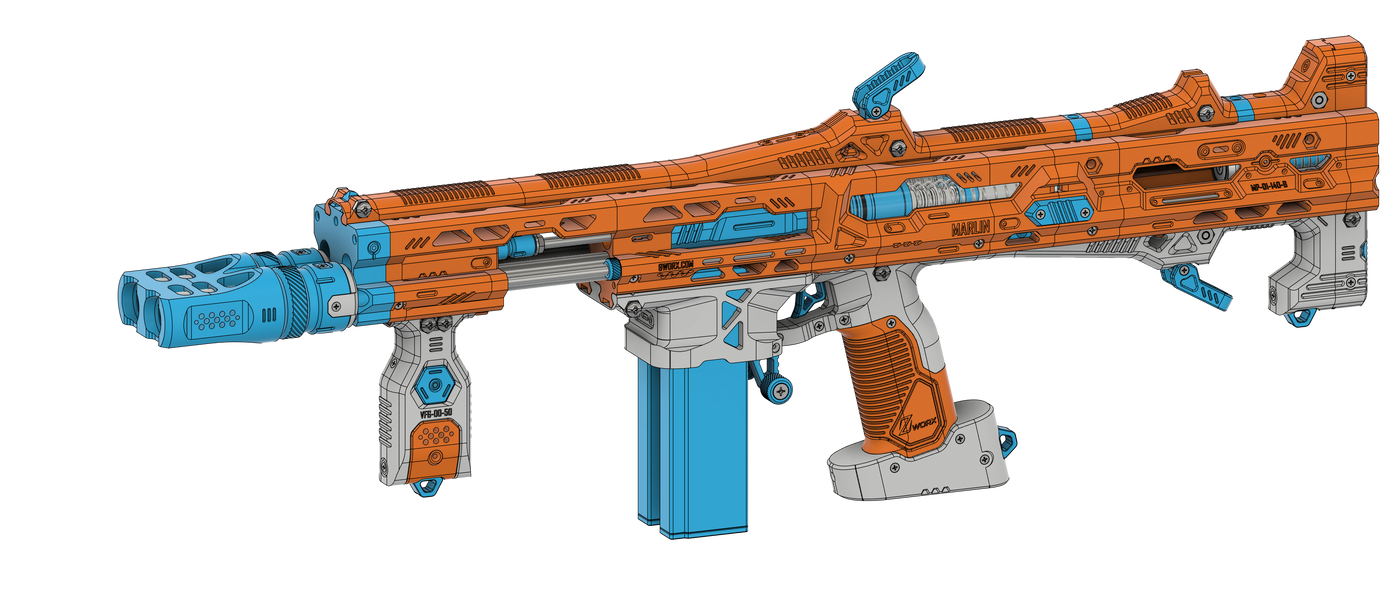

The Marlin X2P expands the direct-plunger architecture into a two-barrel configuration while retaining the metal catch durability and magnetic pump compatibility of the Hammerhead platform. The offset barrel layout preserves attachment ecosystem compatibility (VGM-00-210 X2 is the only receiver at the moment for the X2P series) and the lightweight dual-plunger format delivers higher shot capacity without significant added complexity or hardware.
Hardware Kit
| Part | McMaster # | Qty required |
|---|---|---|
| 10-32 threaded rod (3ft) | 98838A011 | 3 |
| Catch Washer | 7421K12 | 2 |
| 1.5" OD washer | 92141A035 | 2 |
| K26 (11") (5.5" piece) | 9637K26 | 1 |
| K25 (11") (5.5" piece) | 9637K25 | 1 |
| 1.0" ID Plunger Tube (3ft) | 53945K17 | 10 |
| Alum tube 0.509" ID (3ft) | 9390N15 | 14 |
| 1.0" OD O-RING FAT | 9452K81 | 12 |
Key Features
-
Dual direct-plunger configuration
-
Staged-trigger capability for sequential firing
-
Offset barrel layout compatible with Zeroworx attachment ecosystem
-
Full-metal catch system for durability under load
