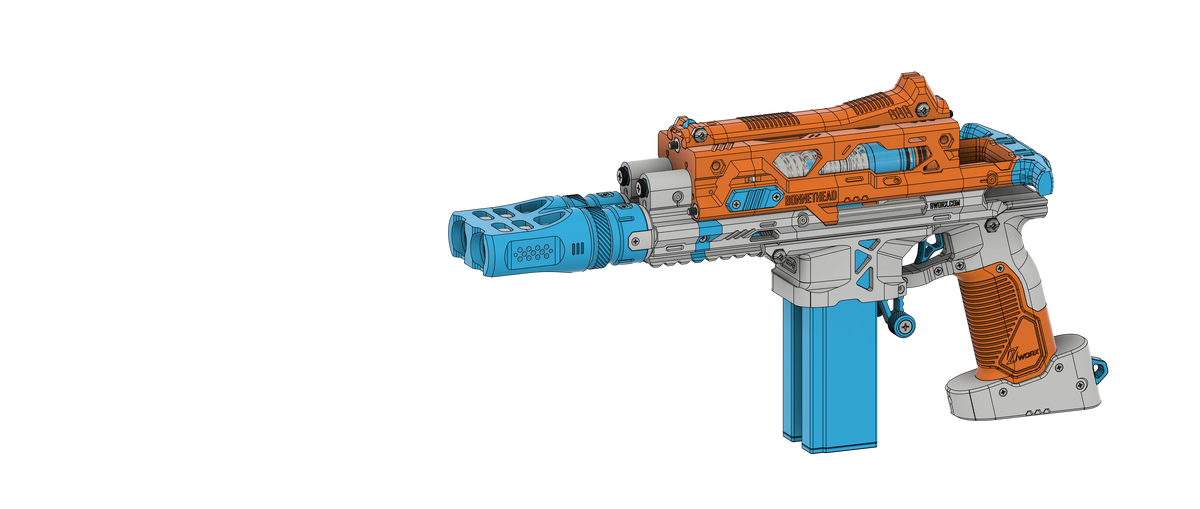

BONNETHEAD X2P
Dual 1.0" Plunger Tube Variant
Description
The Bonnethead X2P is a dual-barrel expansion of the Bonnethead platform built around two 1.0" ID plunger tube systems with staged-trigger firing. It offers increased shot capacity in a compact layout while keeping the spacer-driven Bonnethead frame style and reduced hardware profile. The system supports lightweight front-end components and delivers sequential control without altering the core platform.
Hardware Kit
| Part | McMaster # | Qty required |
|---|---|---|
| 10-32 threaded rod (3ft) | 98838A011 | 3 |
| Catch Washer | 7421K12 | 1 |
| 1.5" OD washer | 92141A035 | 1 |
| K25 (11") (5.5" piece) | 9637K25 | 1 |
| K26 (11") (5.5" piece) | 9637K26 | 1 |
| 1.0" ID Plunger Tube (3ft) | 53945K17 | 10 |
| Alum tube 0.509" ID (3ft) | 9390N15 | 7 |
| 1.0" OD O-RING FAT | 9452K81 | 12 |
Key Features
-
Dual 1.0" plunger tube configuration
-
Staged-trigger control for sequential firing
-
Compact spacer-based frame layout
-
Low hardware count for a two-shot system
-
Compatible with lightweight front-end configurations
