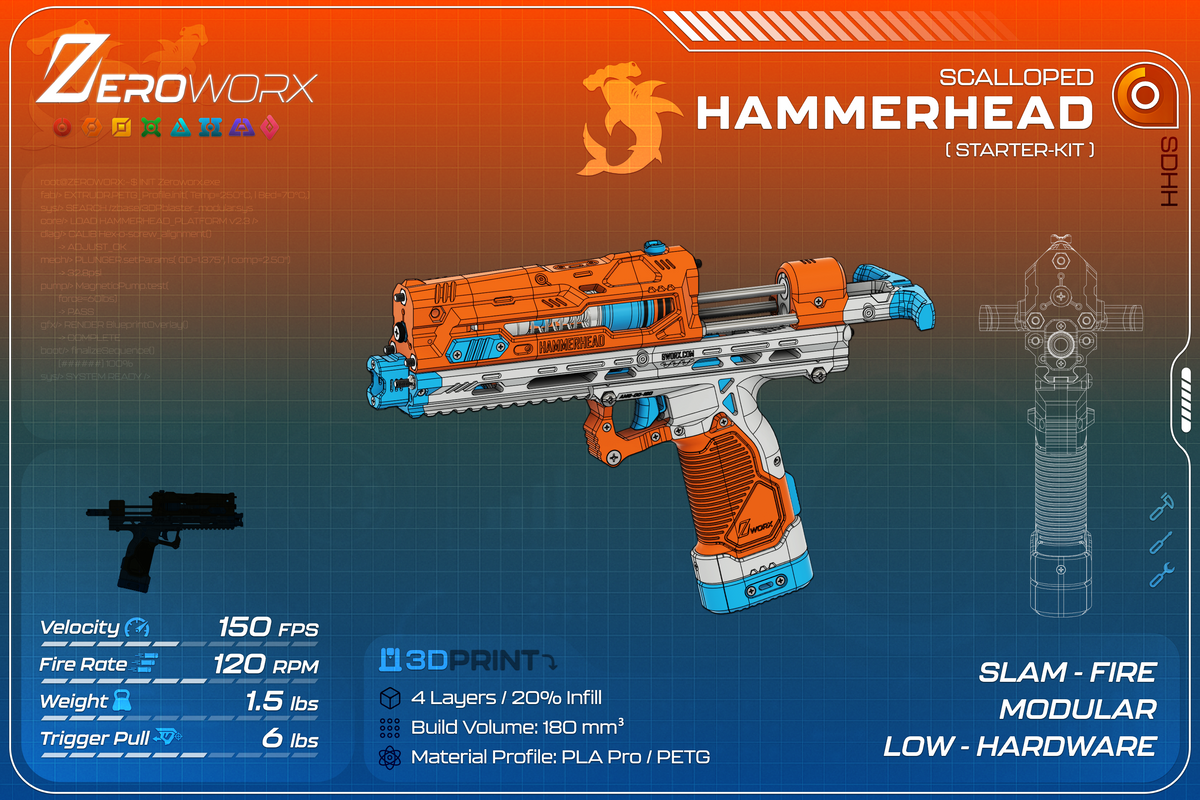

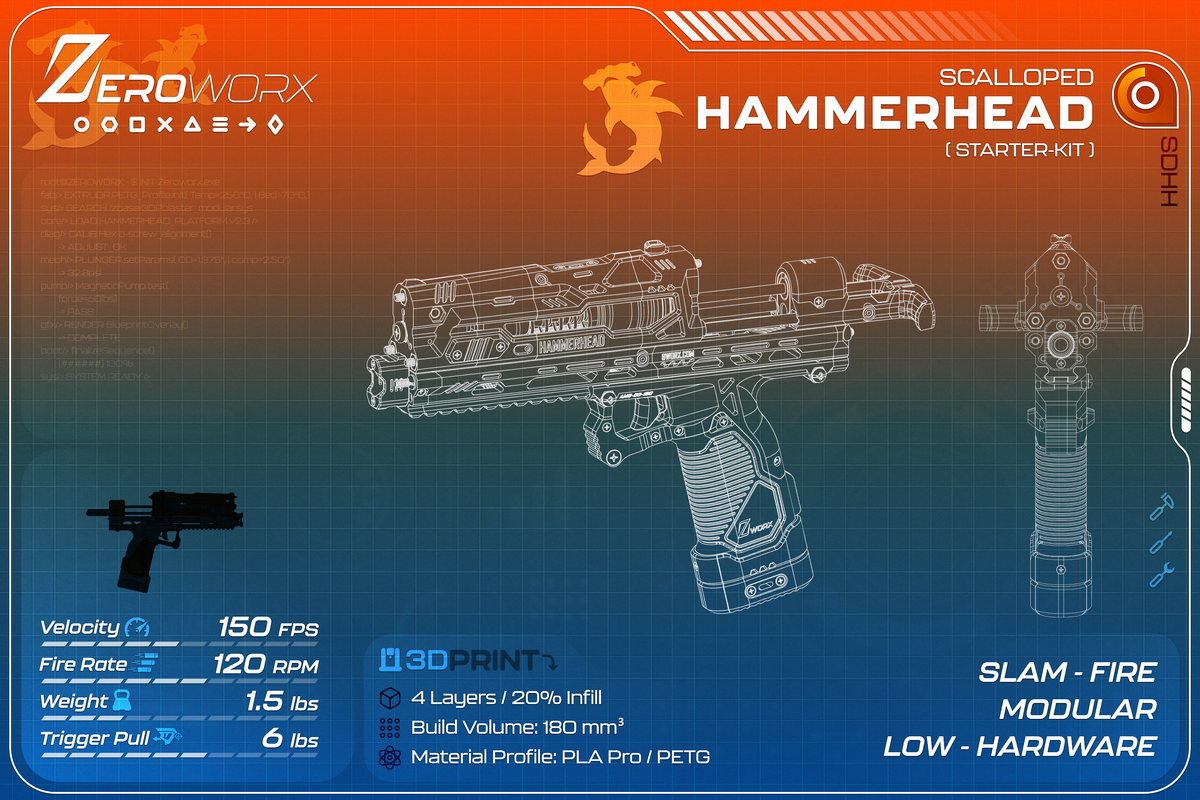

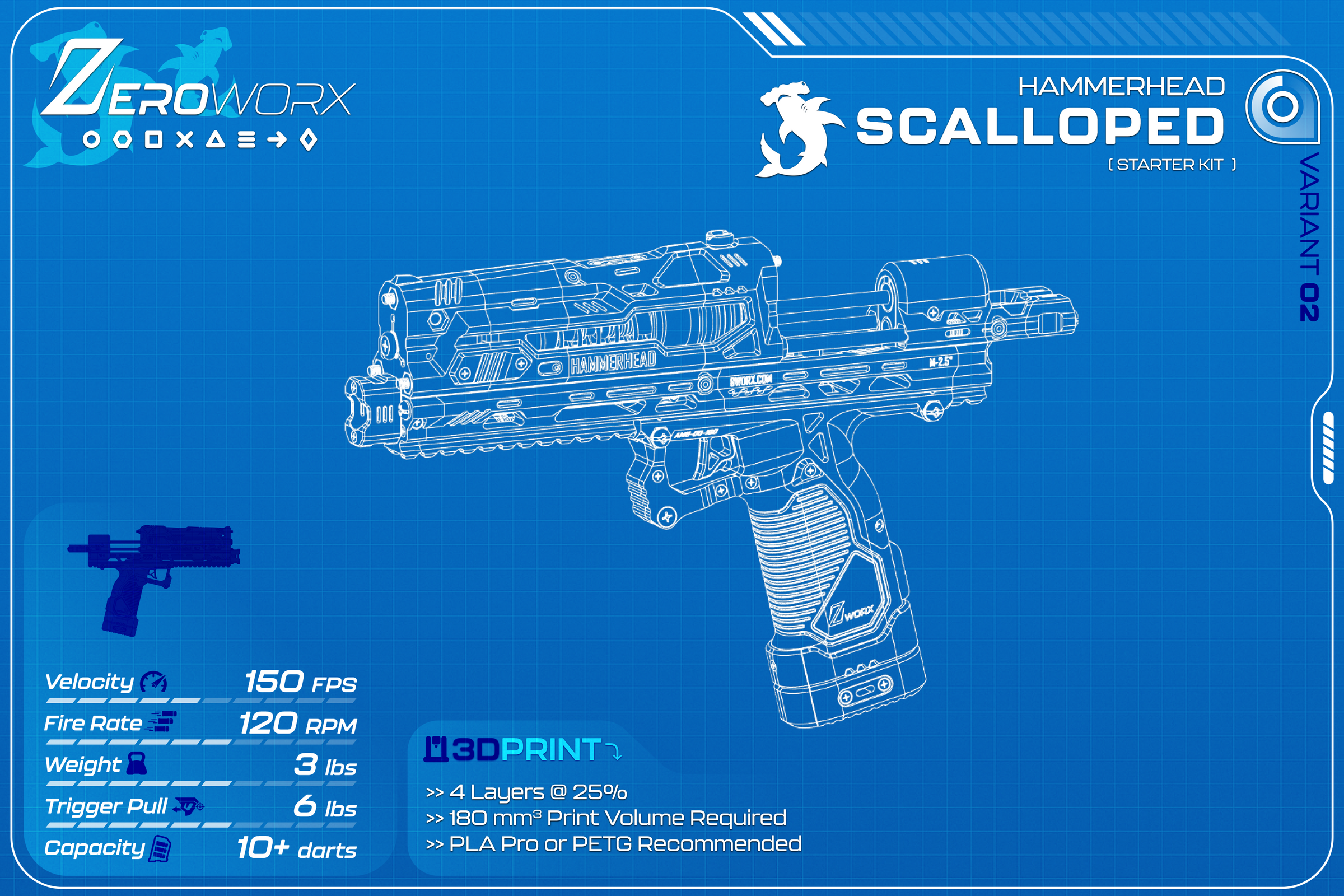

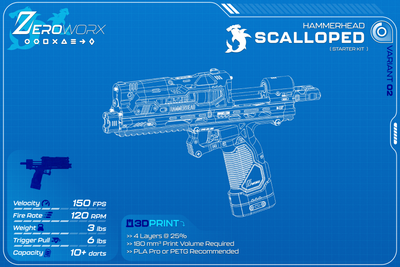

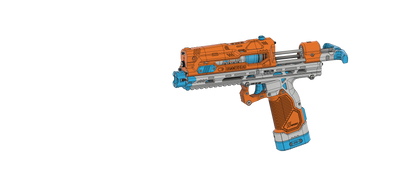

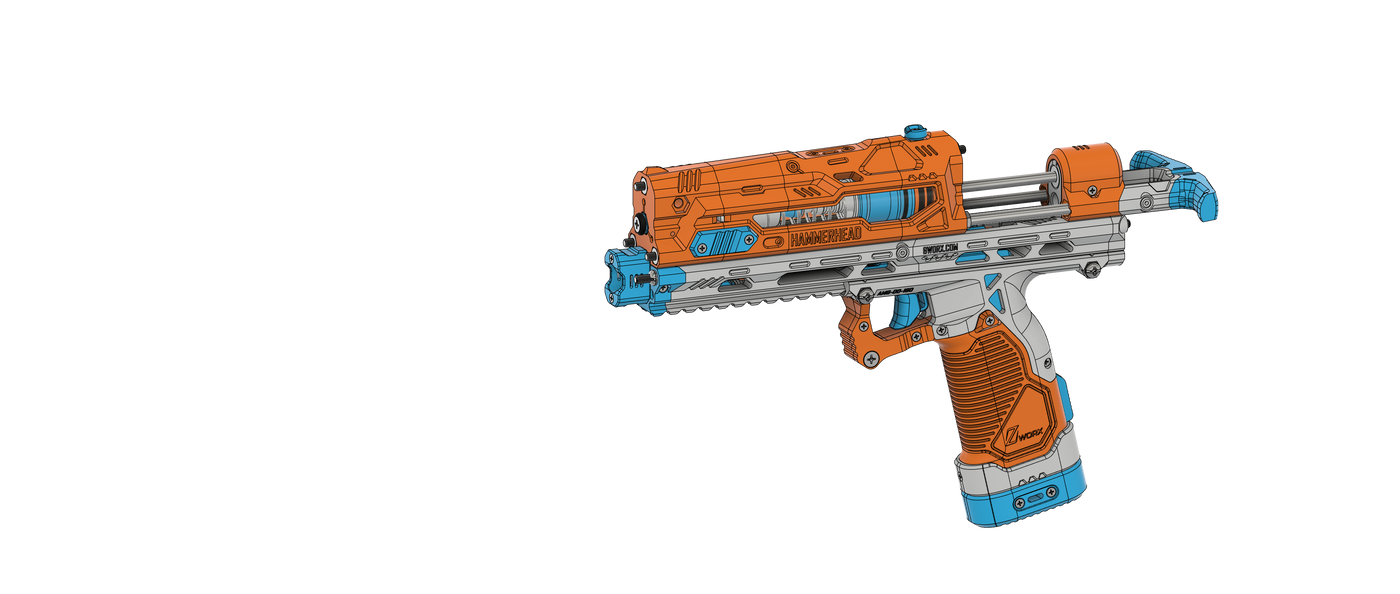

Scalloped Hammerhead — Accessible to New Builders
The Scalloped Hammerhead is a one off demo version built as an approachable blaster for new users. It keeps the strength and serviceability you expect from Hammerhead engineering while stripping weight and complexity so getting started is fast and fun.
Hardware Kit Includes:
| Part |
McMaster # |
Qty required |
| 4-40 3/8" FH (steel) |
90273A108 |
23 |
| 4-40 1" FH (steel) |
90273A115 |
12 |
| 10-32 3/4" FH (steel) |
90273A831 |
6 |
| 10-32 1.25" BH (steel) |
91440A516 |
6 |
| 10-32 1.75" BH |
90279A837 |
3 |
| 10-32 3" BH |
91440A637 |
3 |
| 10-32 1/8" thick nut |
90480A195 |
12 |
| 10-32 Flange nut |
90389A113 |
6 |
| 10-32 threaded rod (3ft) |
98838A011 |
52.5 |
| Catch Washer |
7421K12 |
1 |
| 1.5" OD washer |
92141A035 |
1 |
| 3" Spacer (steel) |
93265A034 |
4 |
| 1" Spacer |
93330A476 |
1 |
| Small Spring (3/4") (36" *5) |
9662K16 |
6 |
| K25 (11") (5.5" PIECE) |
9637K25 |
1 |
| 1.375" ID Plunger Tube (3ft) |
53945K21 |
5 |
| Alum tube 0.509" ID (3ft) |
9390N15 |
7 |
| Press Insert for plastic |
92395A112 |
6 |
| 1.375" OD O-RING |
9452K87 |
6 |
| 0.5" OD O-RING FAT |
9452K18 |
6 |
| 0.5" OD O-RING |
9452K21 |
6 |
Why Choose Scalloped Hammerhead
-
Designed for beginners and demo use with minimal setup
-
Lighter because it omits the expensive and heavy 9" internally threaded spacers used in the standard Hammerhead
-
Alternative stabilizing system that maintains rock solid handling in a compact package
-
Clean, stylized slide that references the crest from Hammerhead V1.7
