Step 1 / 11

Mouth

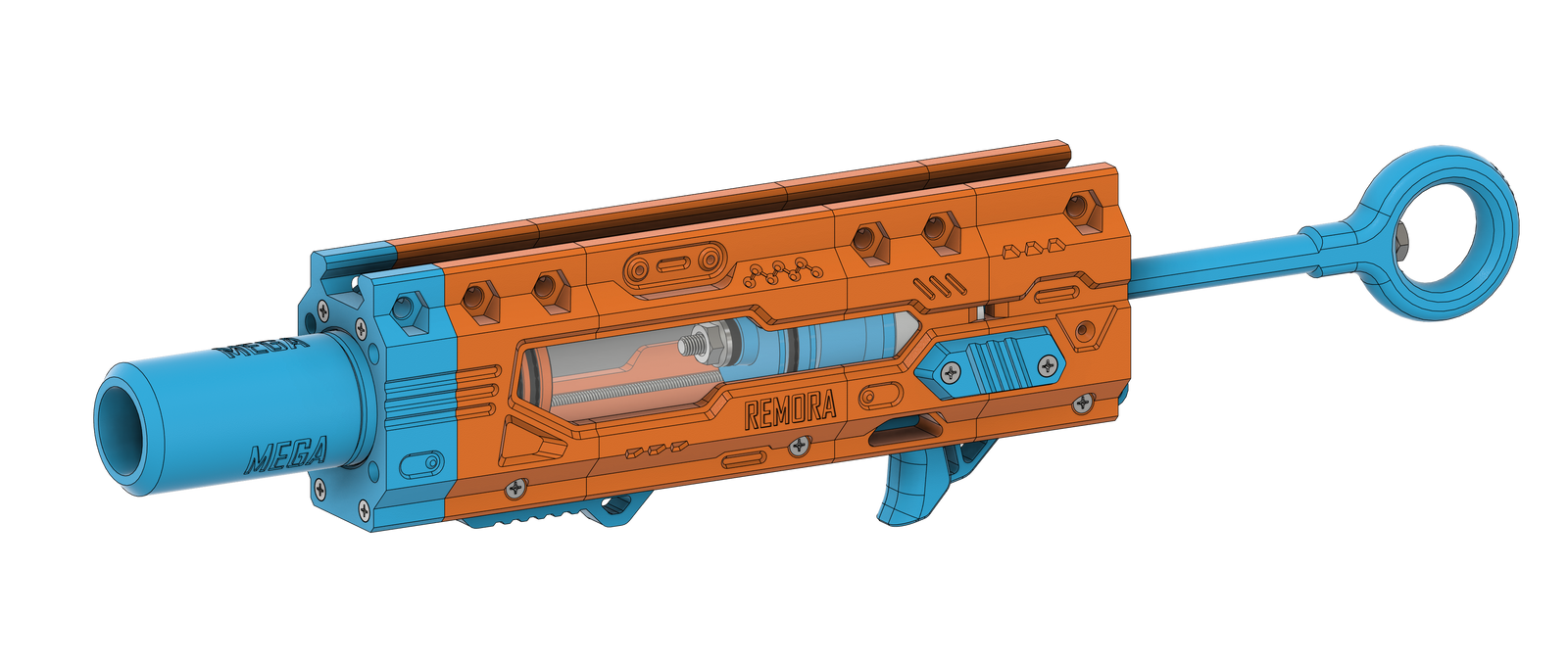

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

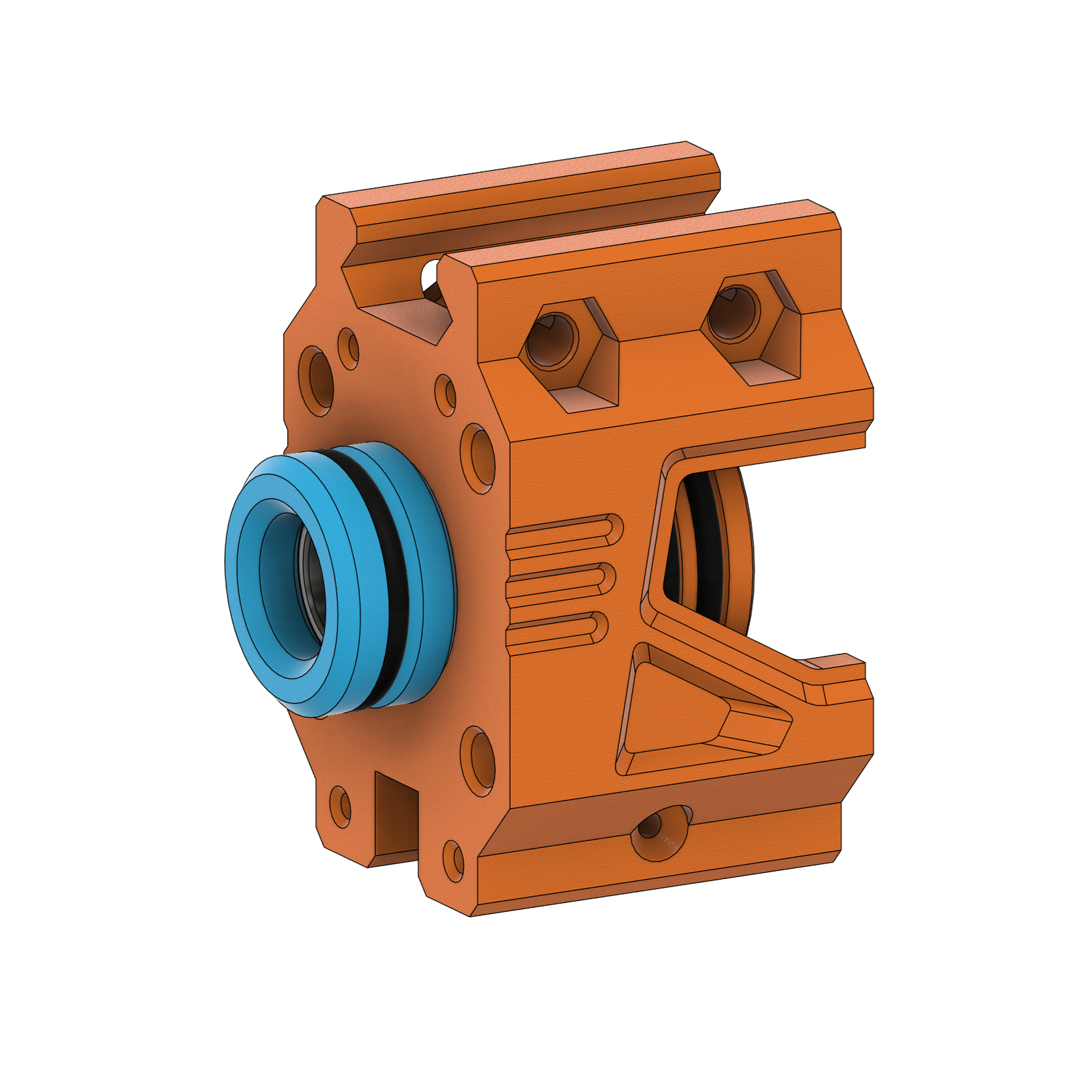

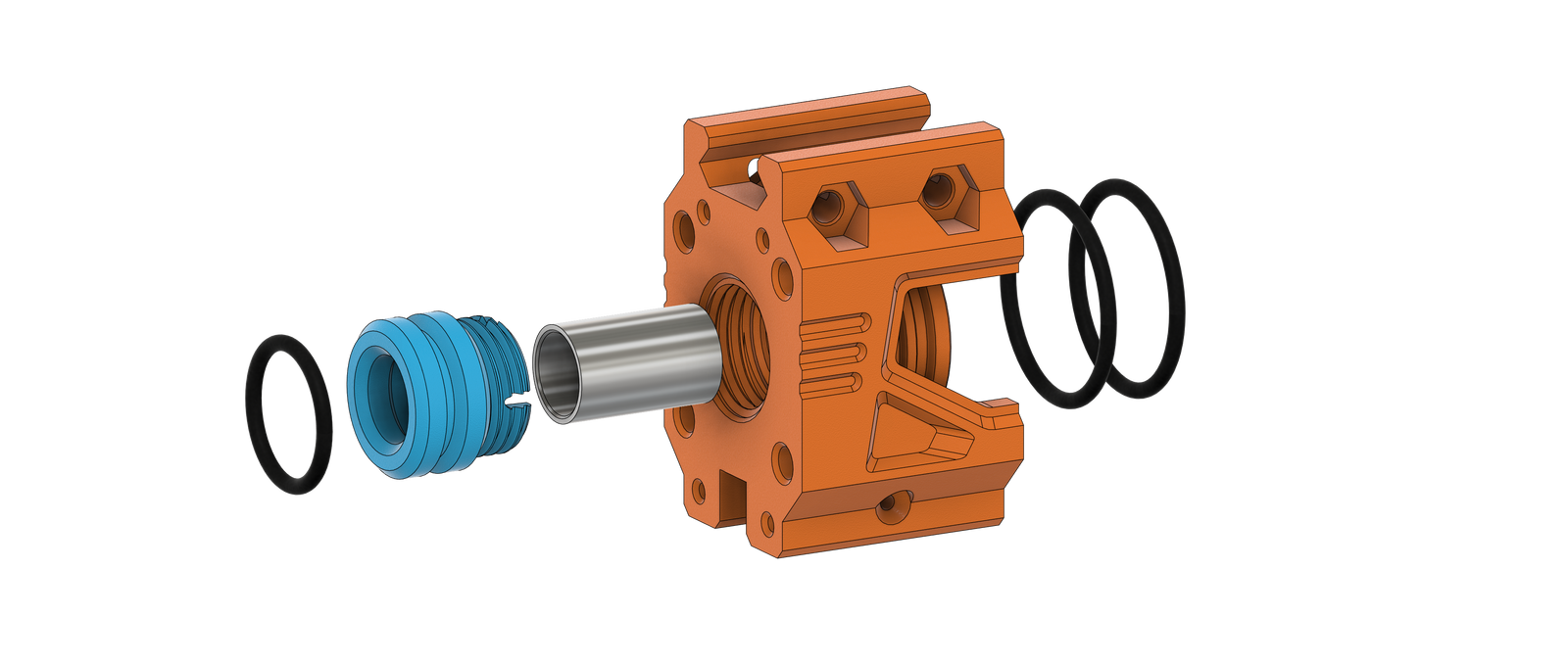

1 push o-rings onto mouth & collet
2 insert barrel in mouth
3 screw on collet until secure

[ ASSEMBLY ]

Step 2 / 11

Plunger

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

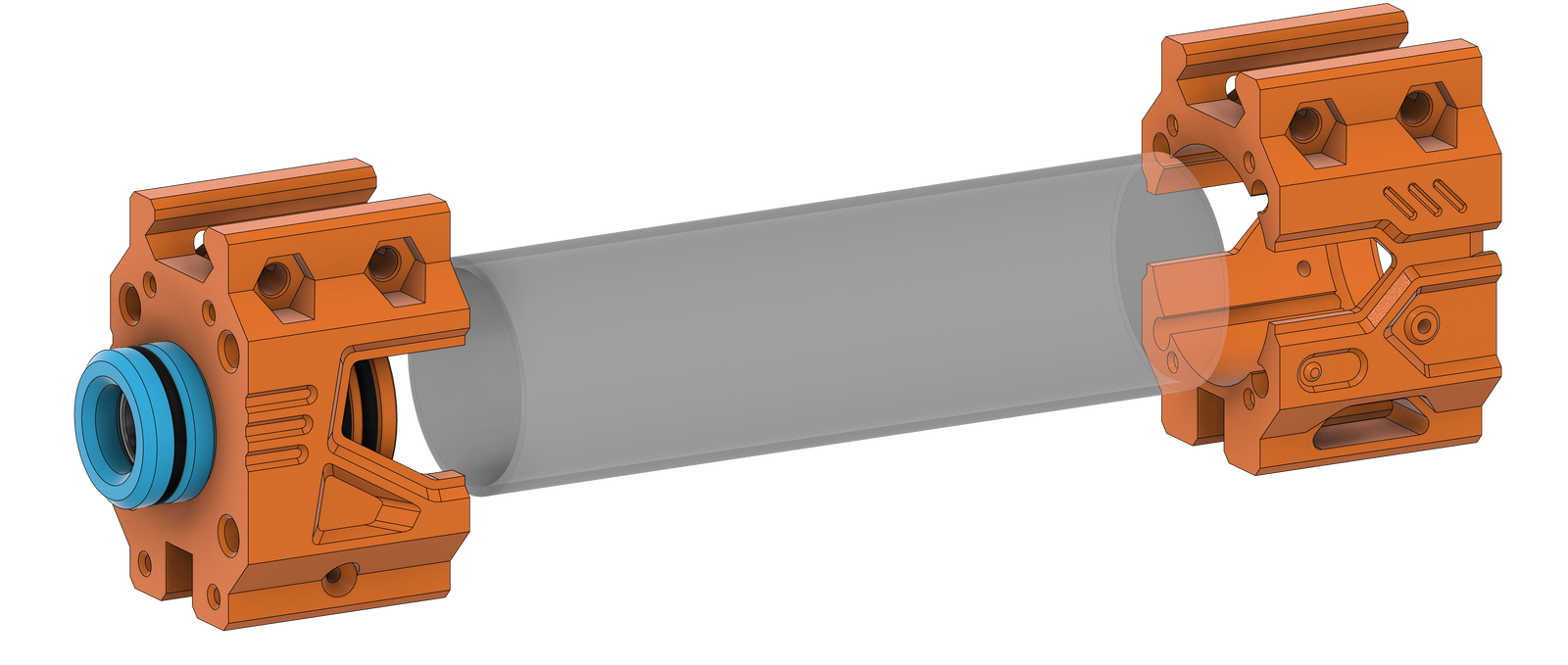

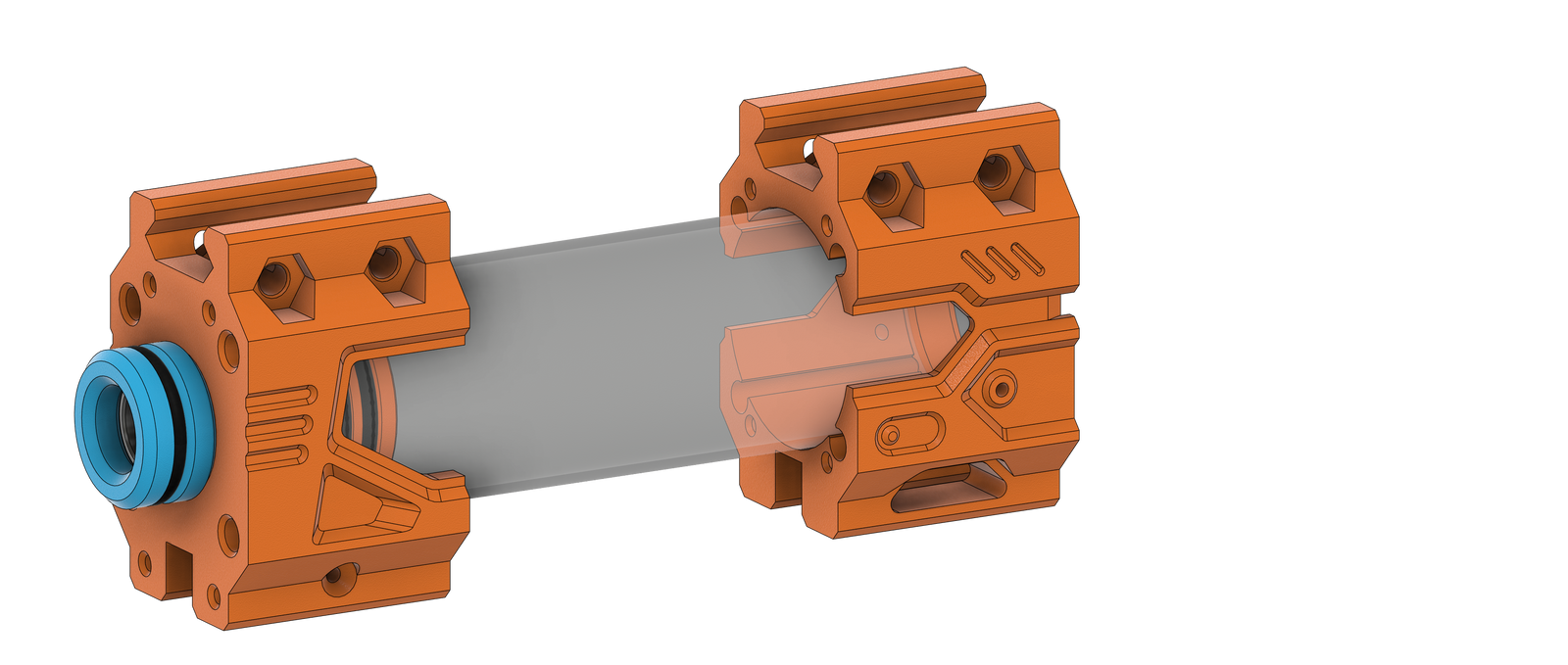

1 Insert plunger tube into [ Mouth ]
2 Insert [ Slide ] over plunger tube
-

[ ASSEMBLY ]

Step 3 / 11

Catch

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

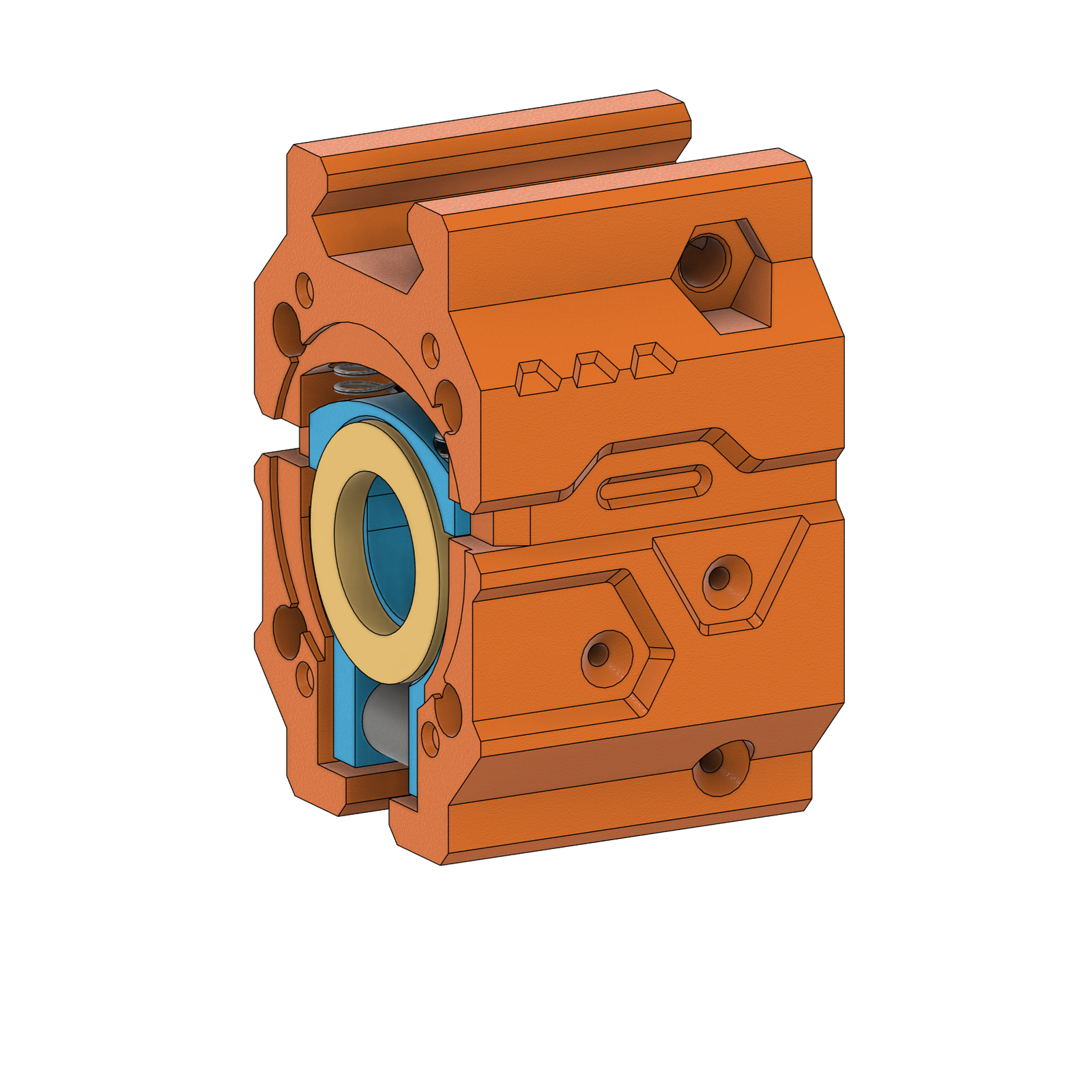

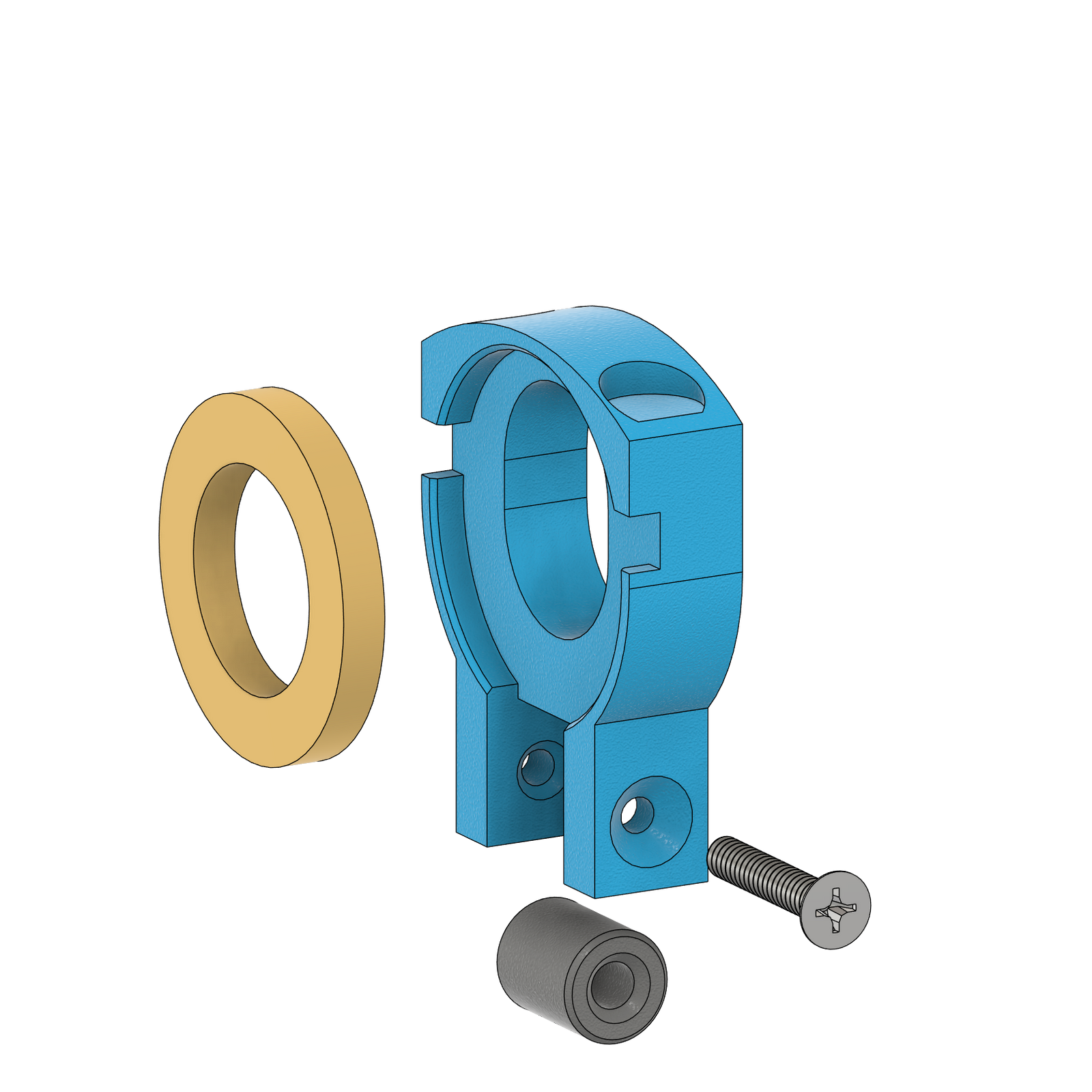

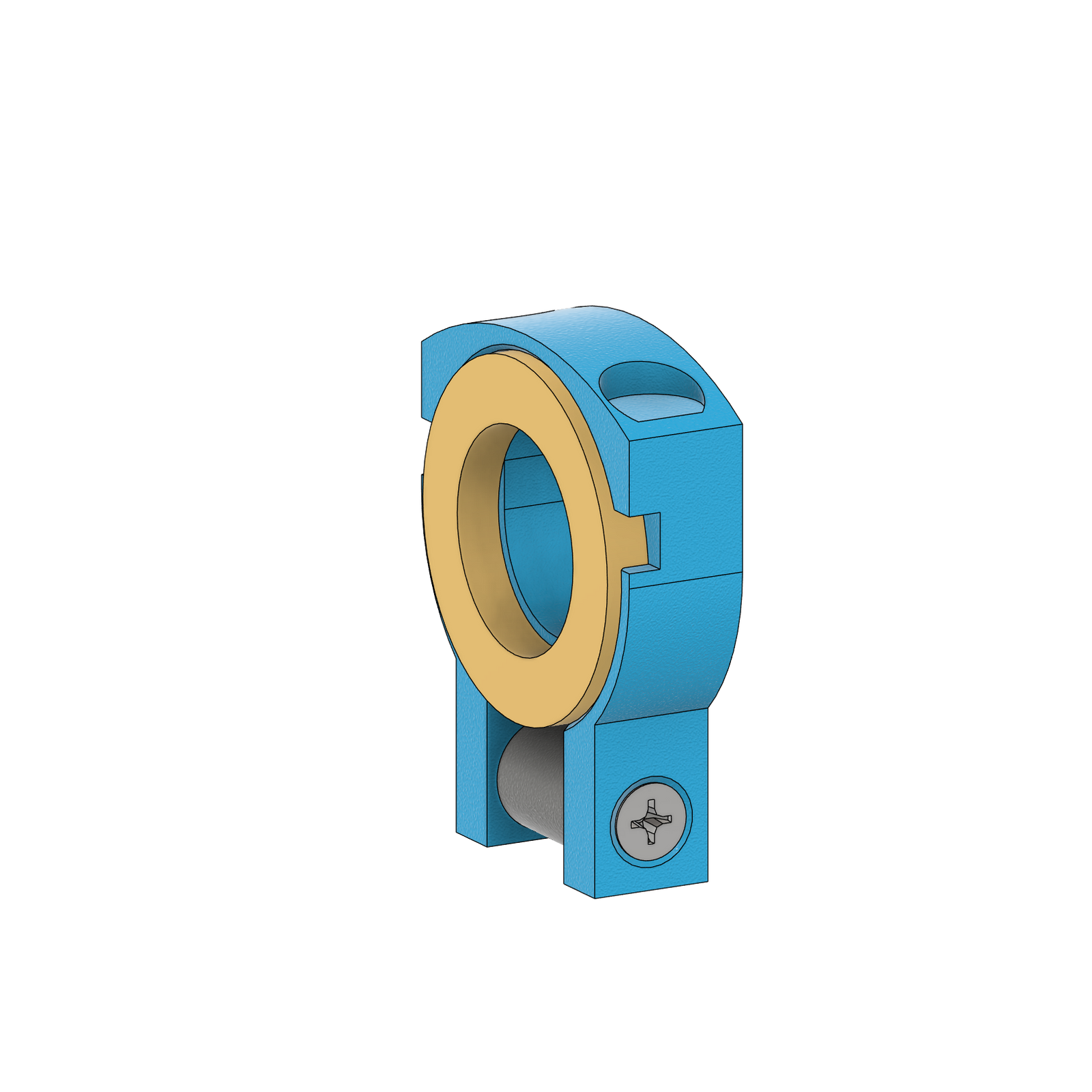

1 Insert Washer into front of Catch Block
2 Screw roller into the bottom of the Catch Block
-

[ ASSEMBLY ]

Step 4 / 11

Nose

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

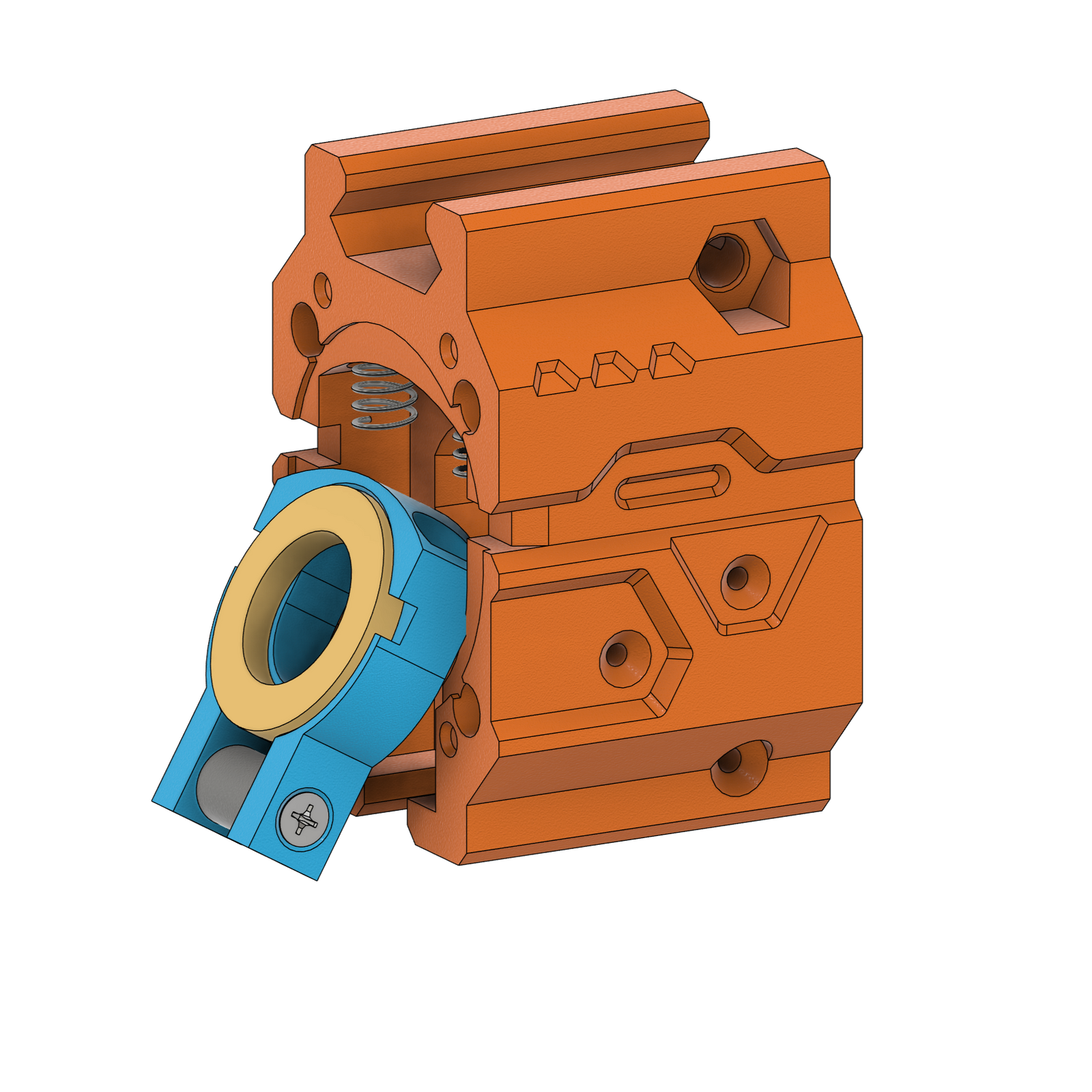

1 Insert two springs into Nose
2 Slide Catch block into Nose and align
-

[ ASSEMBLY ]

Step 5 / 11

Nose

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

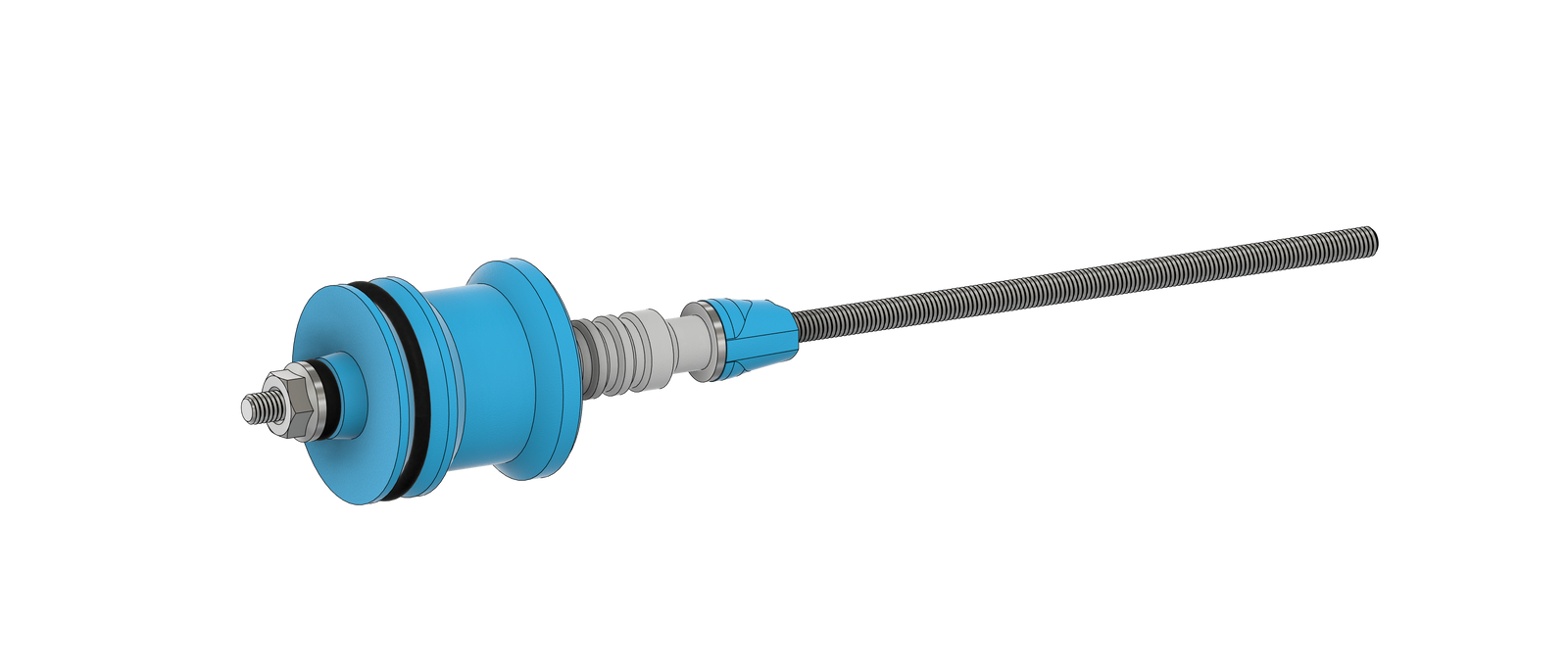

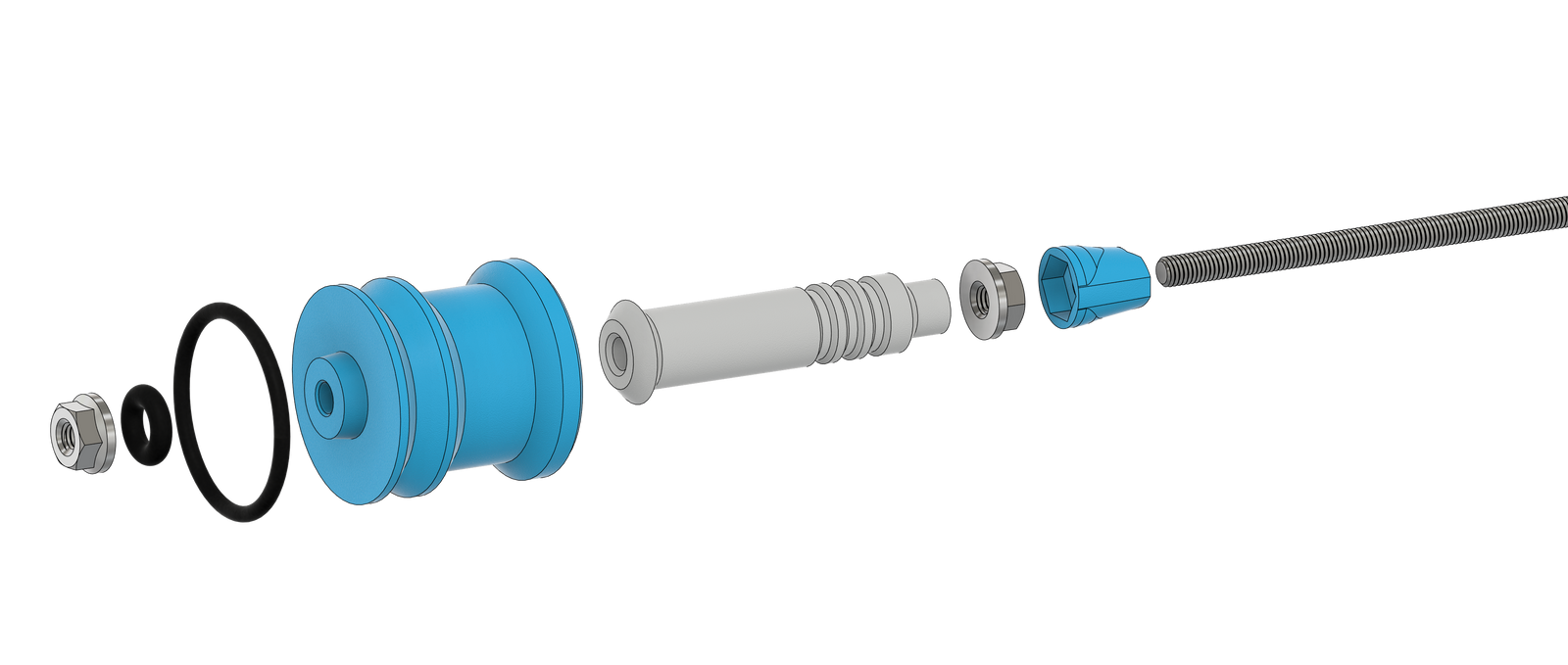

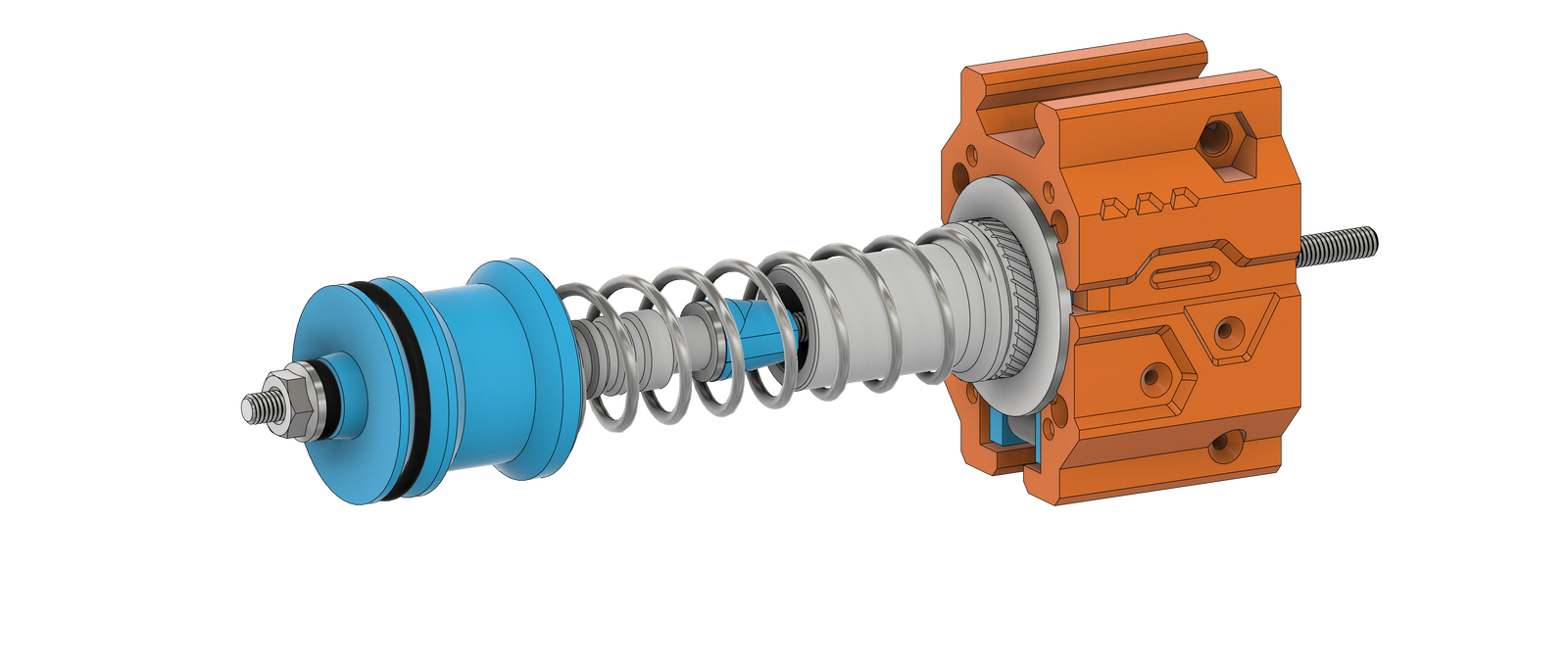

1 Push O-Rings onto Piston
2 Insert Flanged Nut into Cone
3 Thread Rod through Cone + Spine + Piston and tighten with Flanged Nut from the front

[ ASSEMBLY ]

Step 6 / 11

Power Unit

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

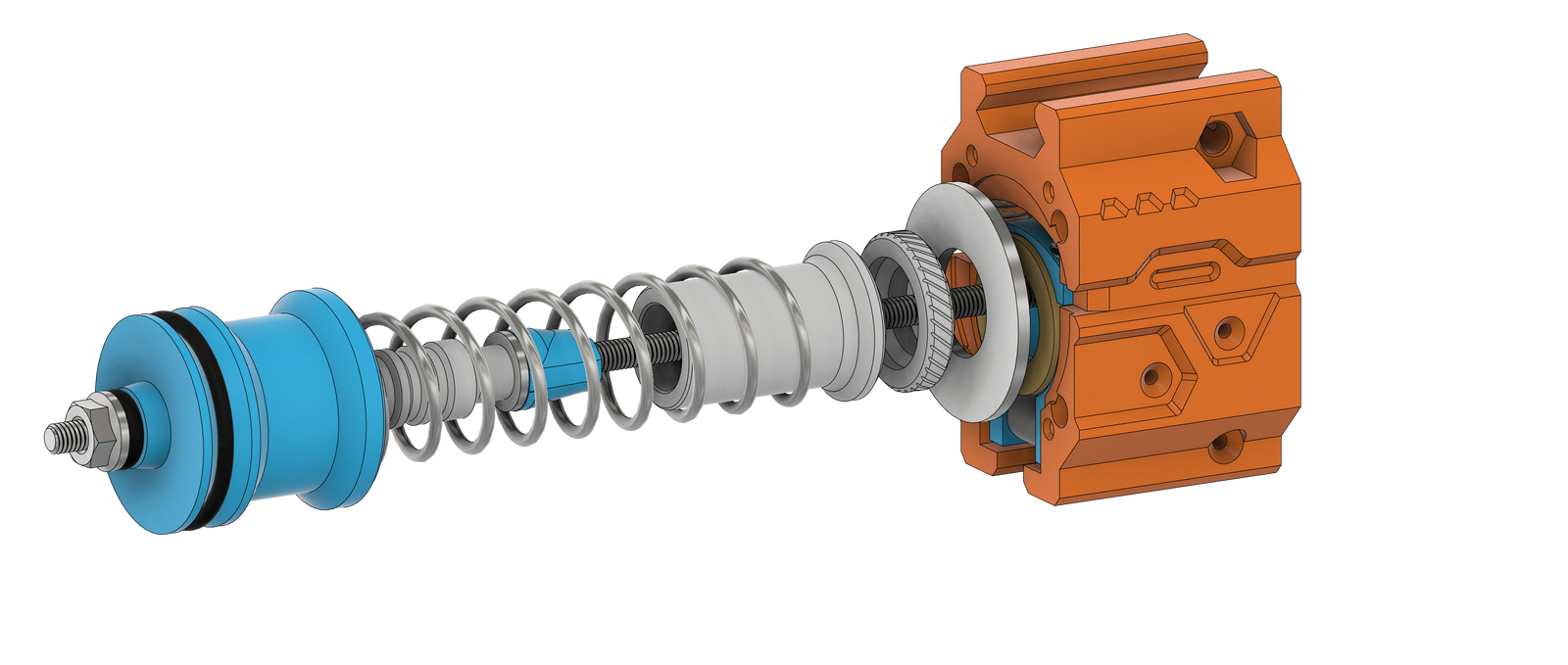

1 Place spring and base in piston
2 Place spacer and washer behind base
3 Push piston rod through Nose

[ ASSEMBLY ]

Step 7 / 11

Fin Pull

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

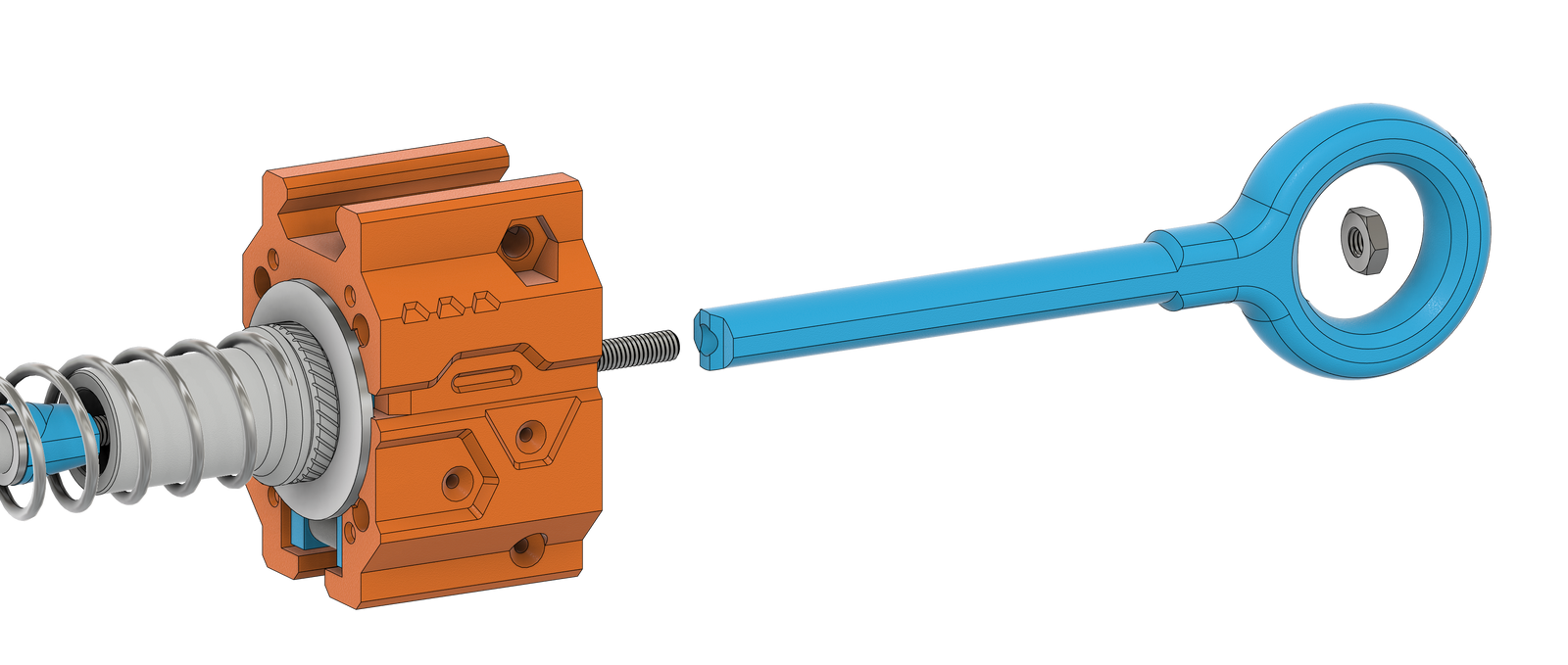

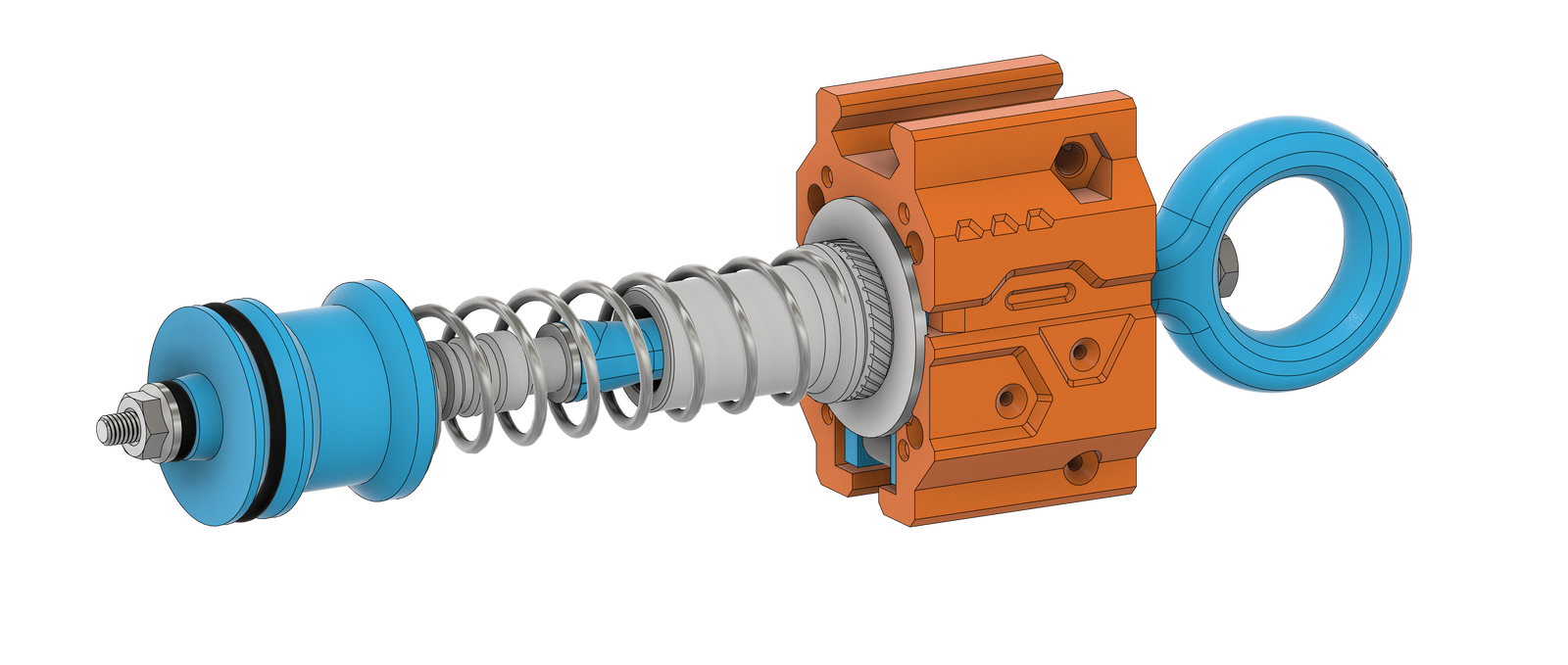

1 Insert Fin Pull into back of Nose
2 Tighten with Nut
-

[ ASSEMBLY ]

Step 8 / 11

Piston

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

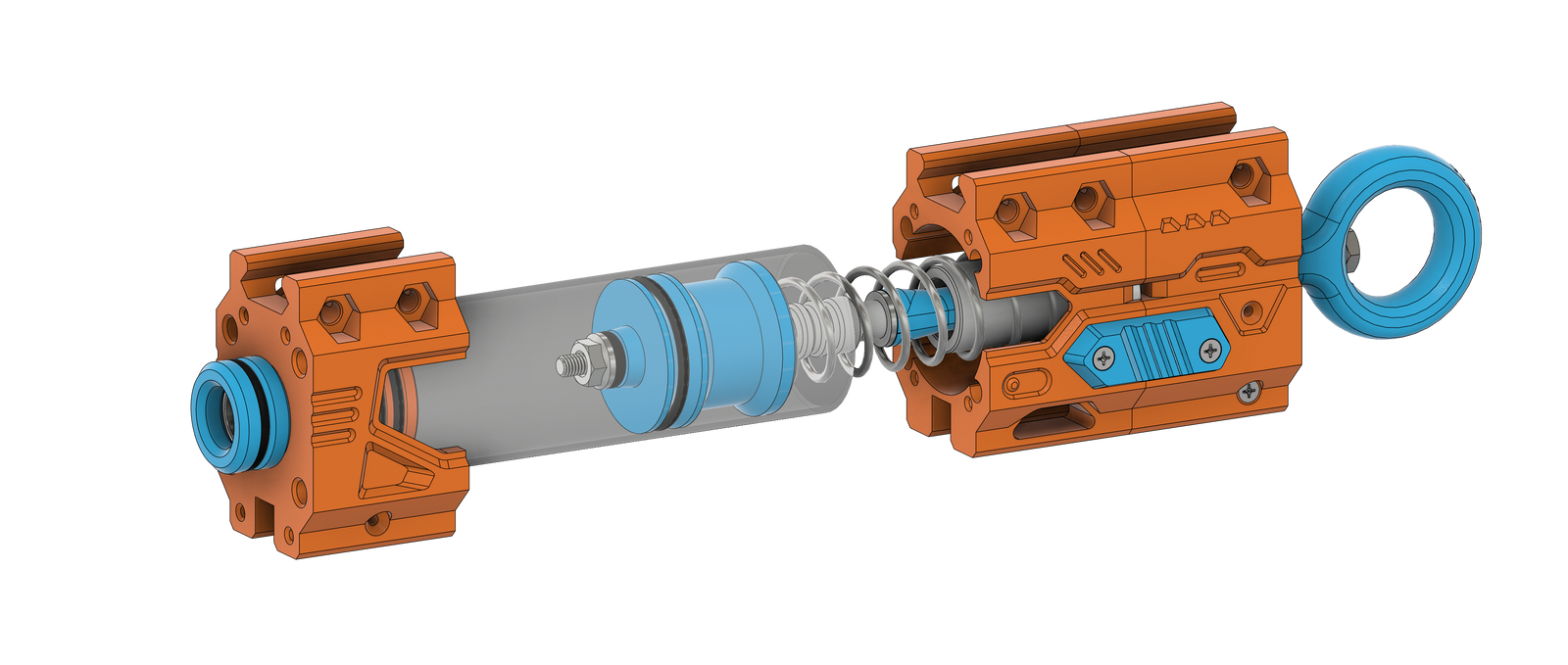

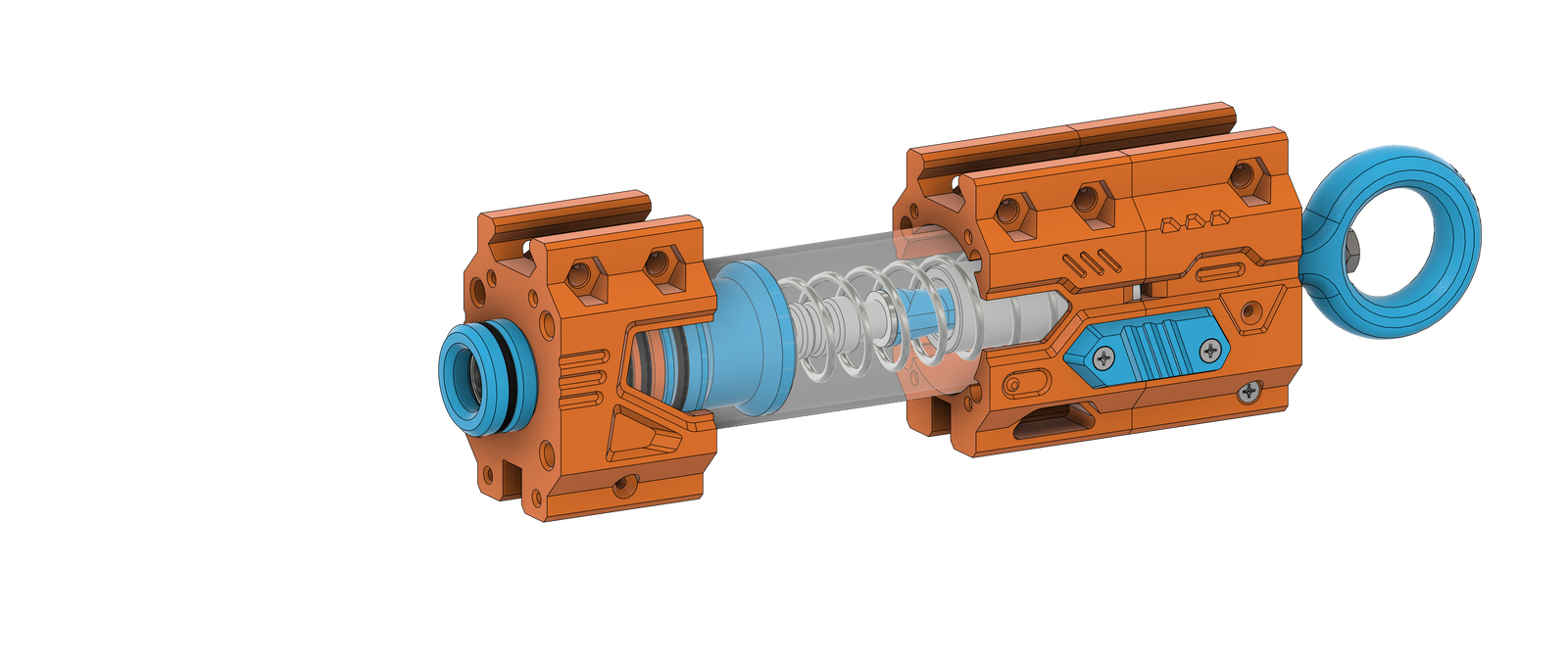

1 Insert Nose + Piston into Plunger
2 Push in until hitting Mouth
-

[ ASSEMBLY ]

Step 9 / 11

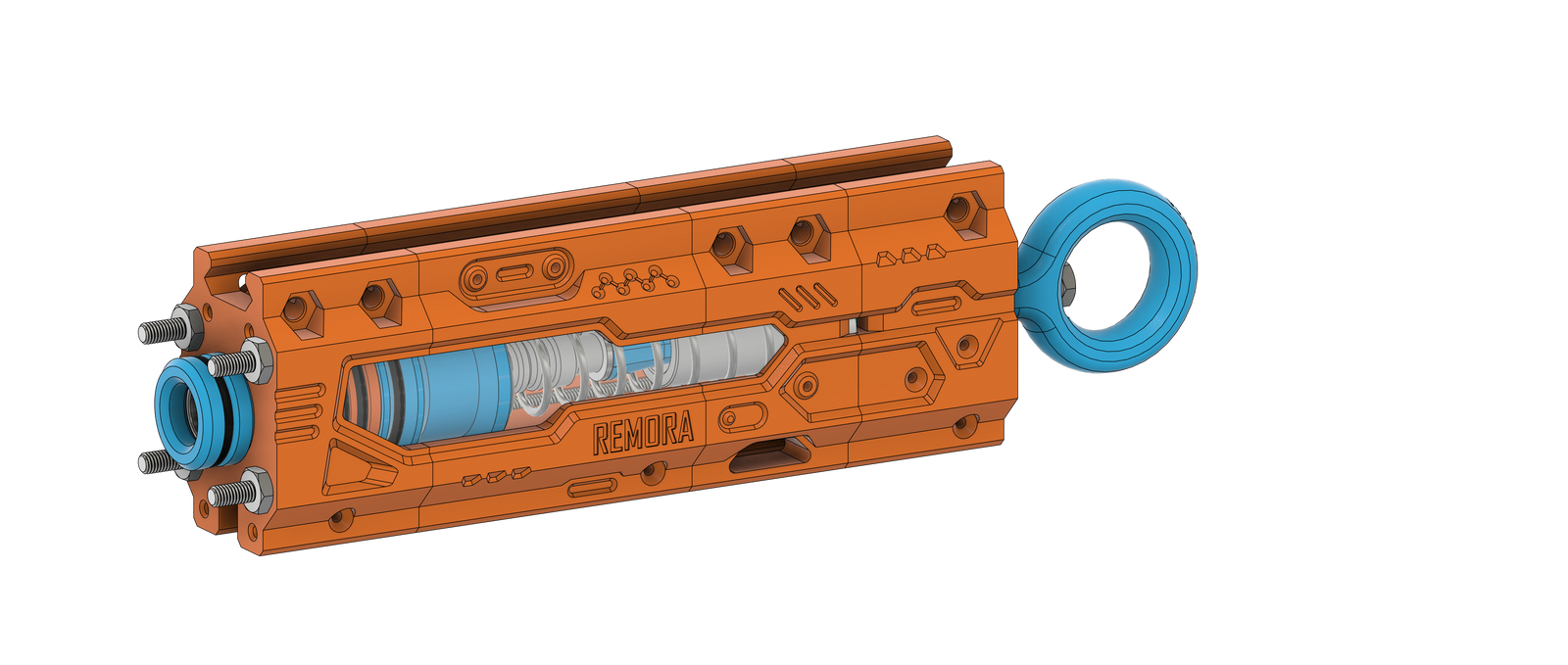

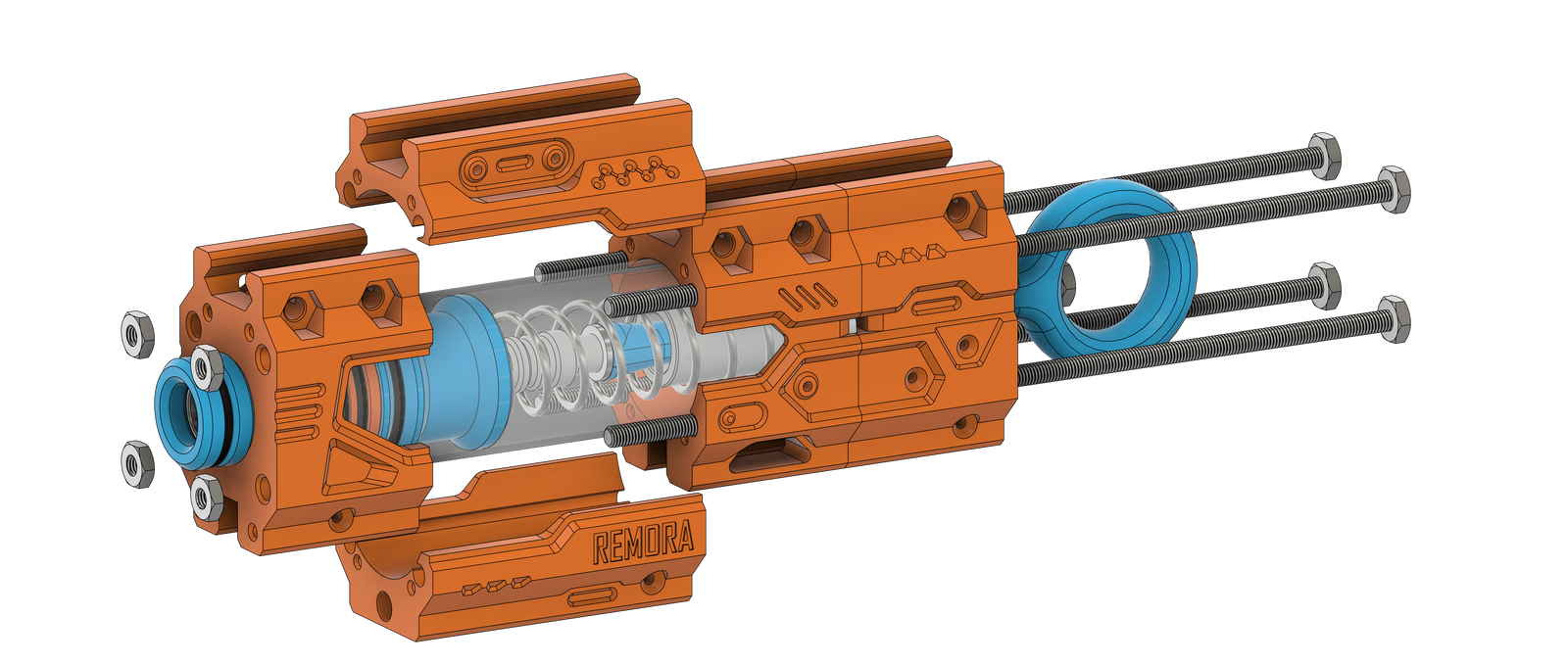

Frame

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

1 Insert Nose + Piston into Plunger
2 Push in until hitting Mouth
-

[ ASSEMBLY ]

Step 10 / 11

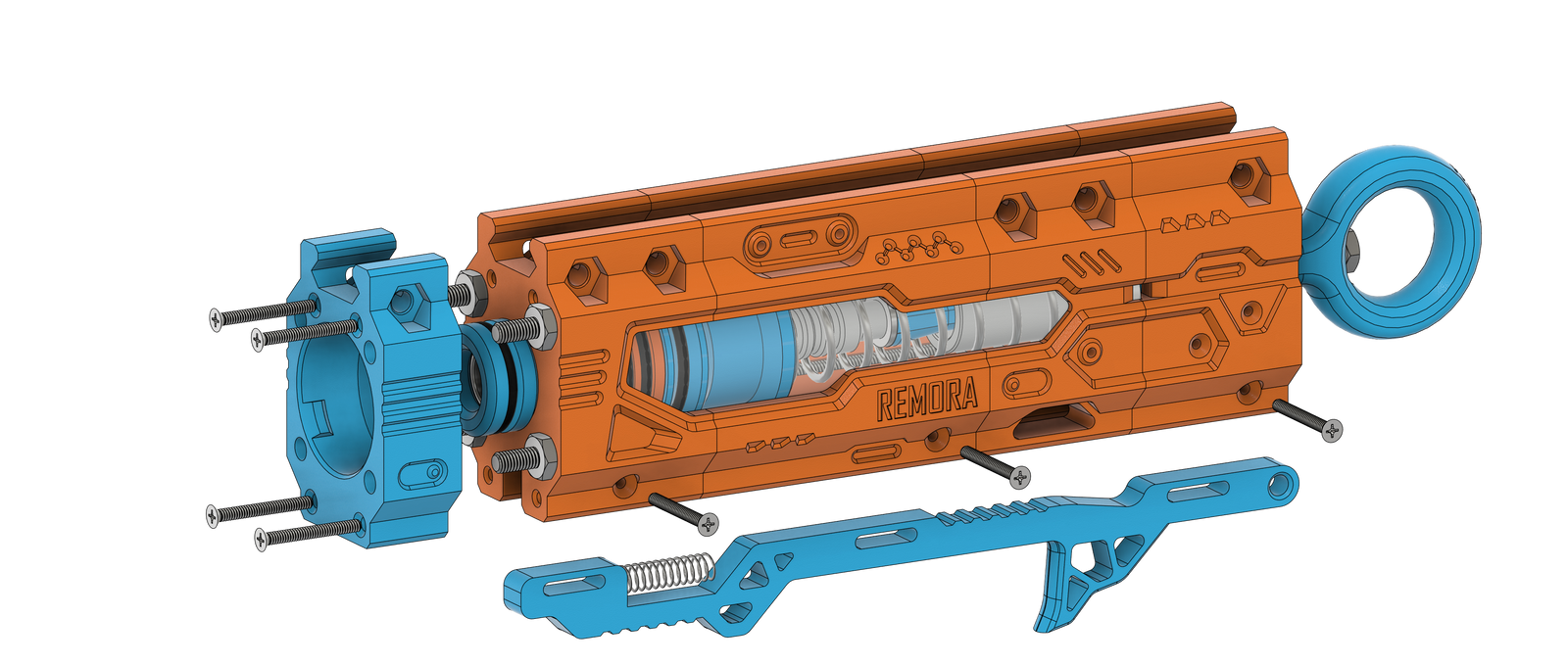

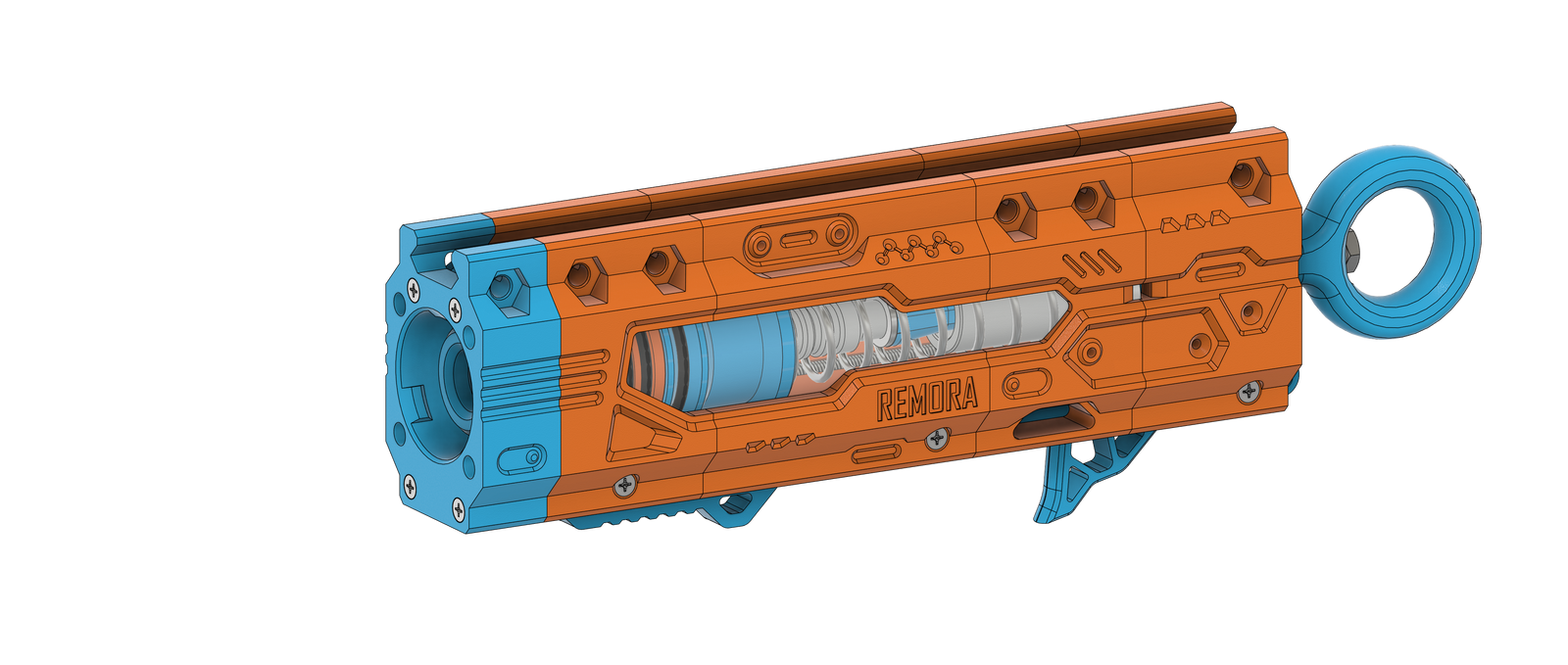

Breach

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

1 Insert Nose + Piston into Plunger
2 Push in until hitting Mouth
-

[ ASSEMBLY ]

Step 11 / 11

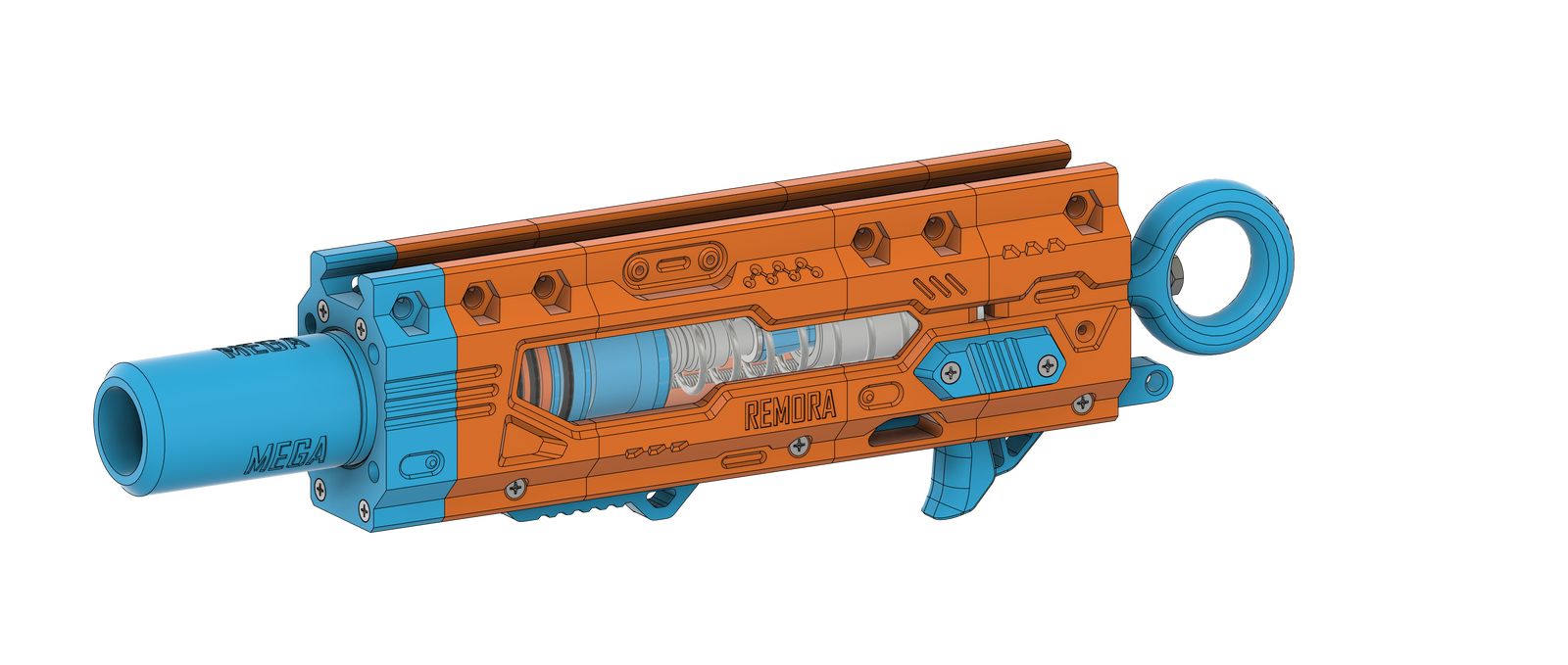

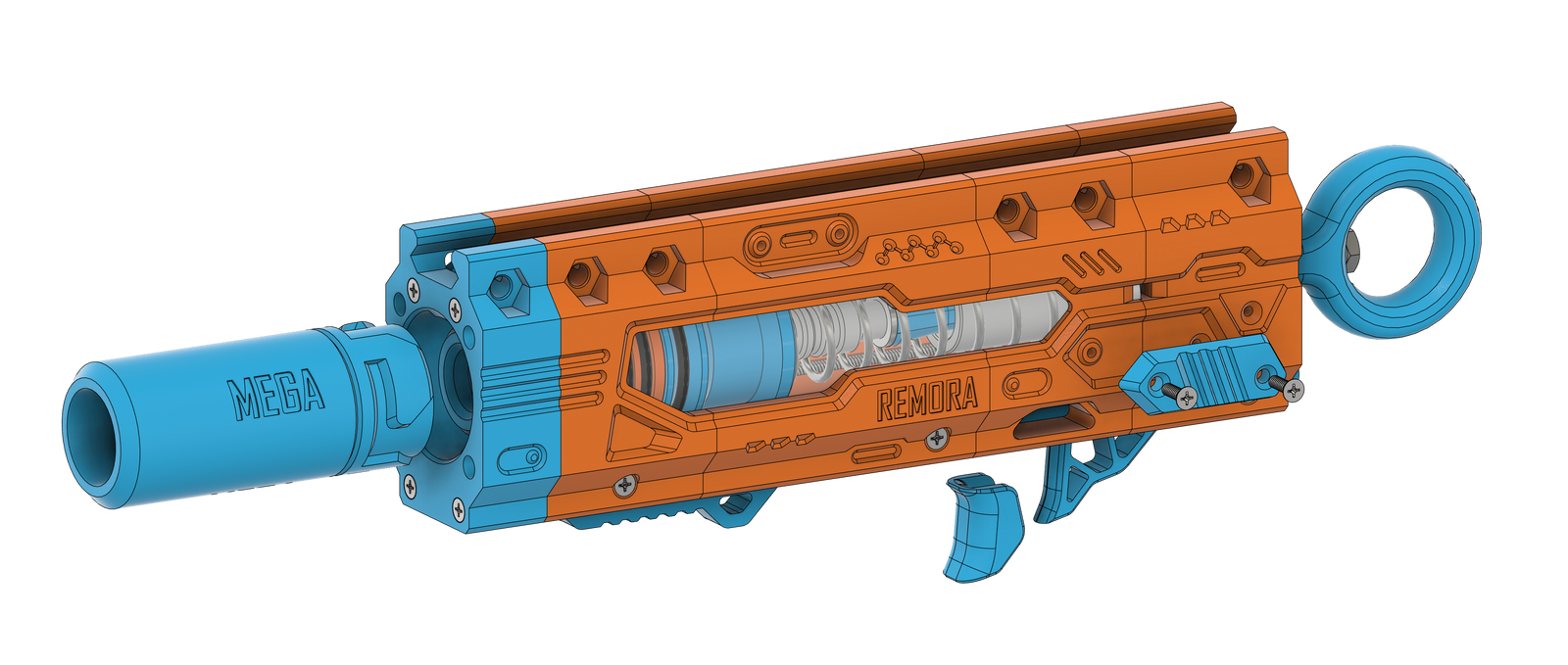

Z-shells

The Remora is auxillary platform designed to be mounted to a variety of blaster systems

Manual

Tool 1 Tool 2 Tool 3 Build ↘

1 Insert Nose + Piston into Plunger
2 Push in until hitting Mouth
-
