SHARKPUP ADD-ON
1.0" Plunger Tube
Description

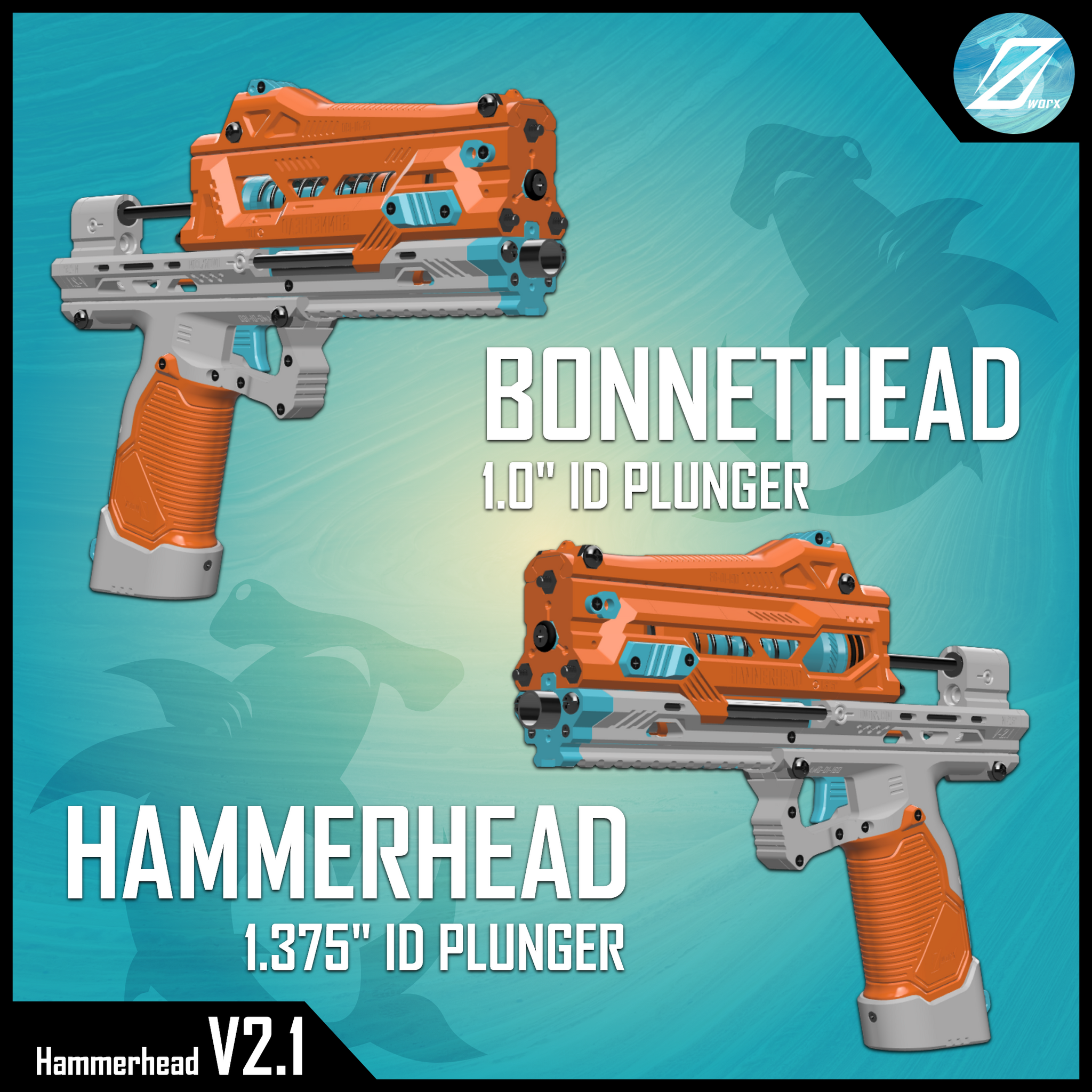

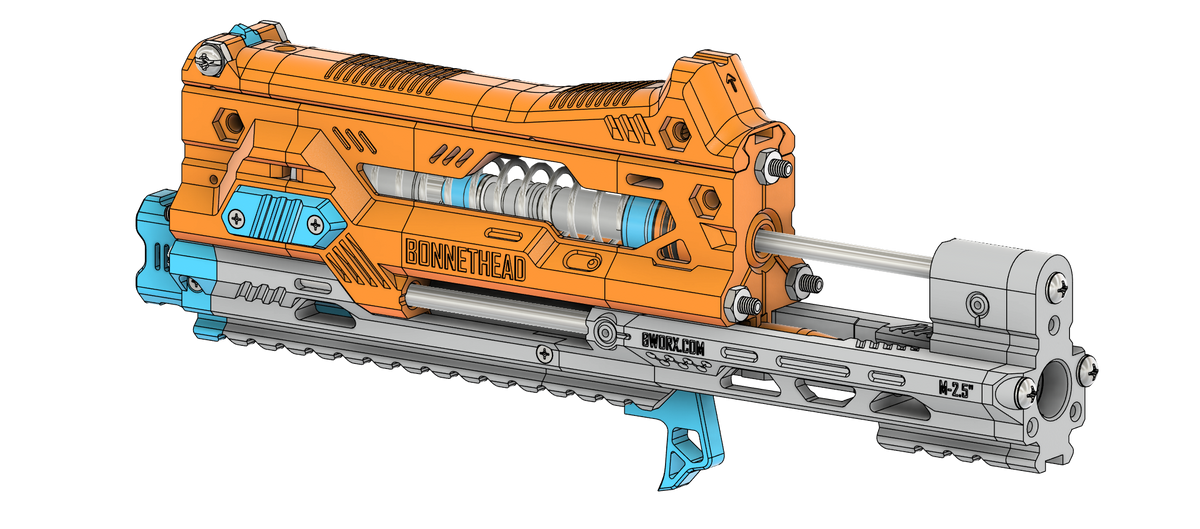

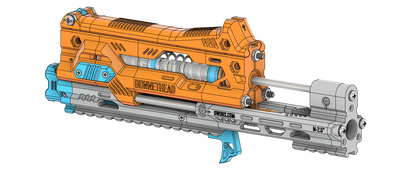

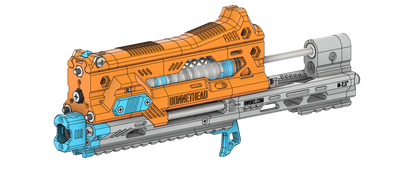

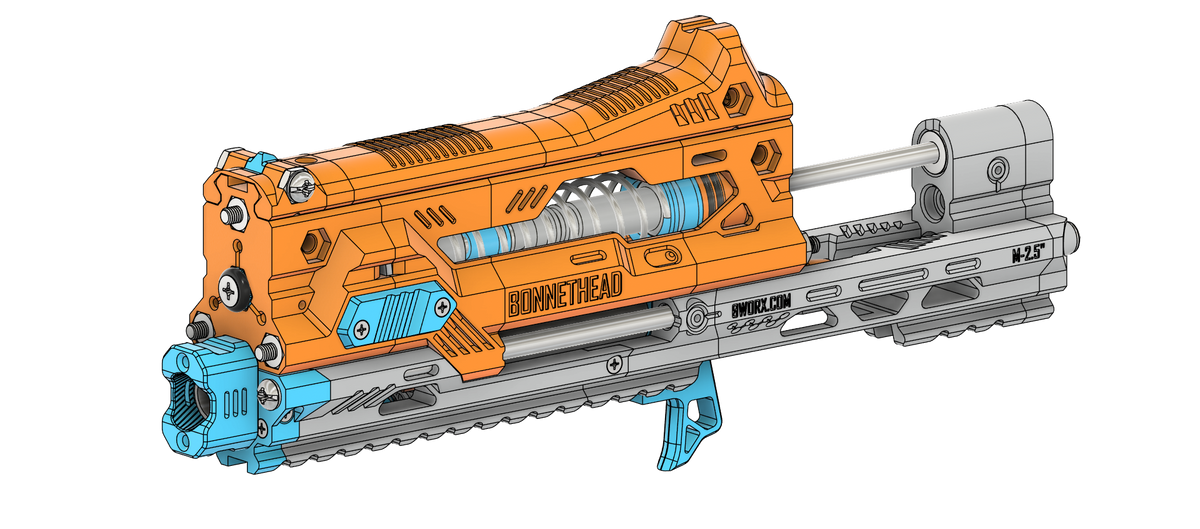

The Sharkpup Add-On is a compact expansion for the Hammerhead platform that enables use of the common 1.0" ID plunger tube. It reduces overall profile and lowers friction during cycling, trading peak power for smoother handling and a lighter form factor. The add-on includes Pup variants for Hammerhead, Mokarran, Scoophead, Bonnethead, and Thresher.
Hardware Kit
| Part | McMaster # | Qty required |
|---|---|---|
| 1.0" ID Plunger Tube (3ft) | 53945K17 | 5 |
| 1.0" OD O-RING | 9452K74 | 6 |
| 1.0" OD O-RING FAT | 9452K81 | 6 |
Key Features
-
Enables 1.0" ID plunger tube in Hammerhead platform builds
-
Smaller and lighter profile for compact configurations
-
Full compatibility with Hammerhead mounting system
Performance Notes
-
Lower peak power compared to the standard plunger tube
-
Compatible only with 7" barrel configuration
