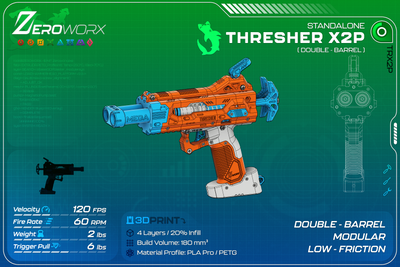

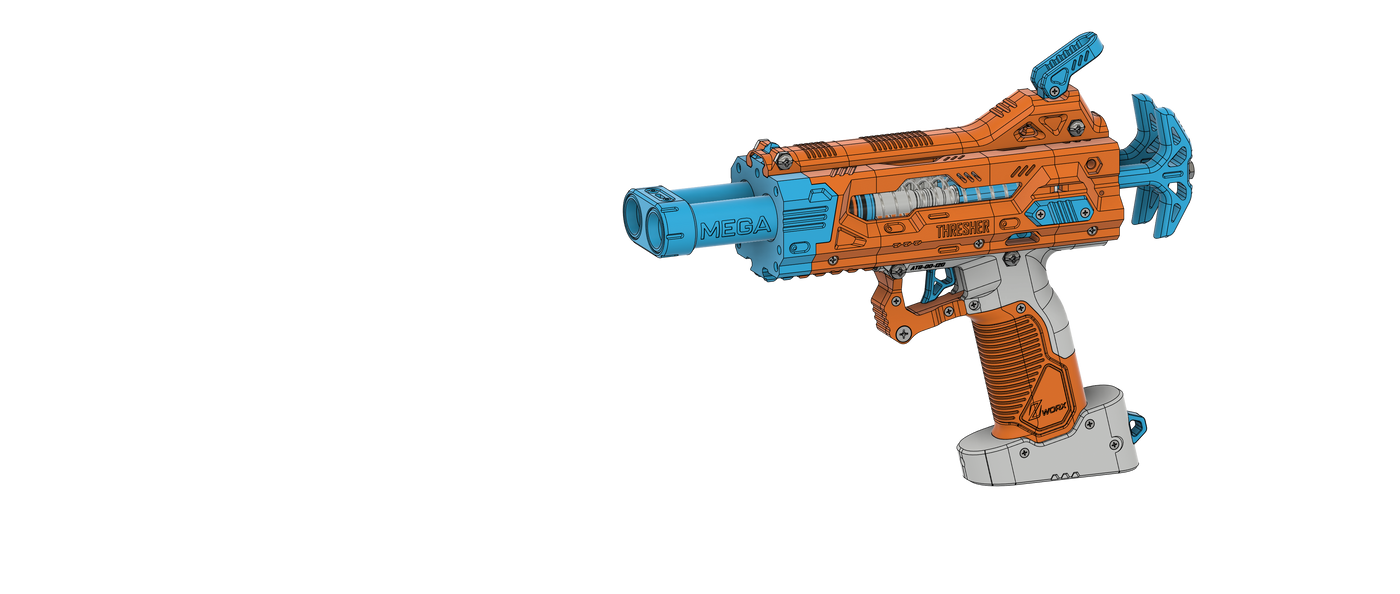

Thresher X2P (STANDALONE)

DOUBLE THRESHER — X2P Twin 1.0" Plunger Tube System Description The Thresher X2P is a dual-barrel expansion that pairs two 1.0" ID plunger tube systems in a compact configuration. The TRX2P system doubles shot capacity while keeping hardware requirements low. Supports Mega and Rival dart formats via dedicated front-end barrel adapters. Hardware Kit Part McMaster # Qty required (+ Thresher Hardware) 10-32 threaded rod (3ft) 98838A011 1 x 9.5" Catch Washer 7421K12 1 1.5" OD washer 92141A035 1 Small Spring (3/4") (36" ×5) 9662K16 6 K26 (11") (5.5" piece) 9637K26 1 K25 (11") (5.5" piece) 9637K25 1 1.0" ID Plunger Tube (3ft) 53945K17 2 x 5" Alum tube 0.509" ID (3ft) 9390N15 1 x 1" 1.0" OD O-RING FAT 9452K81 12 Key Features Dual 1.0" ID plunger tube configuration (X2P system) Staged-trigger operation for sequential blasting Compatible with Mega and Rival front-end components Low hardware count for a dual-barrel platform

Thresher X2P (STANDALONE)
Performance
Performance details coming soon.
Compatibility
Foam
Features
Add product metafields to control this product's tech tree stats.
Family
Zeroworx

DOUBLE THRESHER — X2P

Twin 1.0" Plunger Tube System

Description

The Thresher X2P is a dual-barrel expansion that pairs two 1.0" ID plunger tube systems in a compact configuration. The TRX2P system doubles shot capacity while keeping hardware requirements low. Supports Mega and Rival dart formats via dedicated front-end barrel adapters.

Hardware Kit

Part

McMaster #

Qty required (+ Thresher Hardware)
10-32 threaded rod (3ft) 98838A011 1 x 9.5"
Catch Washer 7421K12 1
1.5" OD washer 92141A035 1
Small Spring (3/4") (36" ×5) 9662K16 6
K26 (11") (5.5" piece) 9637K26 1
K25 (11") (5.5" piece) 9637K25 1
1.0" ID Plunger Tube (3ft) 53945K17 2 x 5"
Alum tube 0.509" ID (3ft) 9390N15 1 x 1"
1.0" OD O-RING FAT 9452K81 12


Key Features

  • Dual 1.0" ID plunger tube configuration (X2P system)

  • Staged-trigger operation for sequential blasting

  • Compatible with Mega and Rival front-end components

  • Low hardware count for a dual-barrel platform
