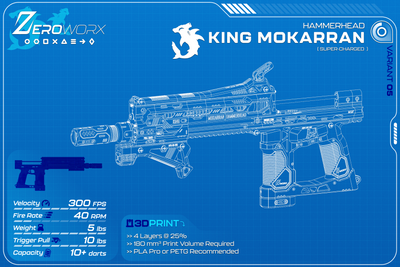

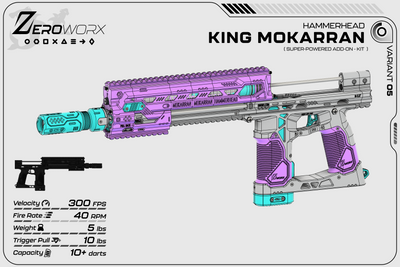

KING MOKARRAN
Maximum-Draw High-Volume Variant
Description
King Mokarran is an extended-draw, high-volume variant of the Hammerhead platform designed for maximum plunger travel and output. The 12" + 4" spacer stack creates a 16" frame, supporting a 5.5" draw length and significantly increased compression and travel compared to the standard configuration. Structural elements and mounting points are reinforced to accommodate higher loads and longer mechanical stroke.
Hardware Kit
| Part | McMaster # | Qty |
|---|---|---|
| 4" Spacer (steel) | 93265A042 | 2 |
| 6" Connecting Rod (stainless) | 7417N59 | 2 |
| 1" Spacer (steel) | 93265A476 | 3 |
| K26 (11") | 9637K26 | 1 |
| K25 (11") | 9637K25 | 1 |
| Alum tube 0.509" ID (3ft) | 9390N15 | 21 |
Key Features
-
5.5" draw for significantly increased plunger volume and energy transfer
-
16" spacer frame using 12" + 4" components for long travel and rigidity
-
Reinforced structure and mounts for higher spring forces and repeated impact
-
High-output configuration intended for experienced builders
